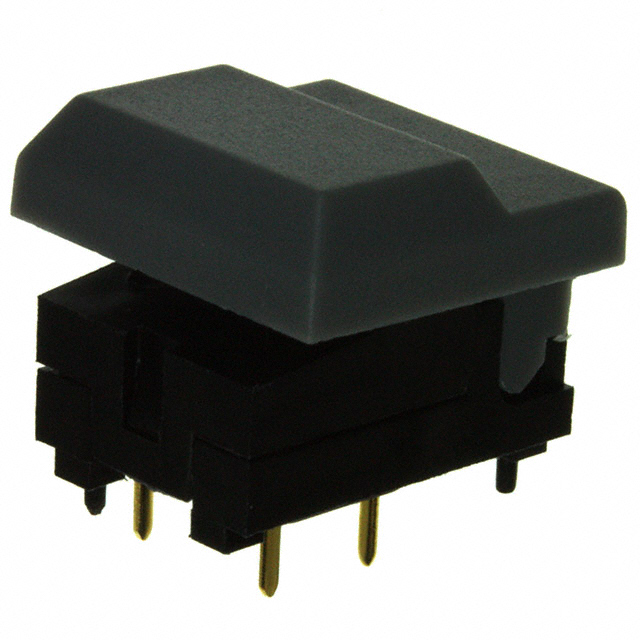

5511MGRYX

Active

E-Switch

SWITCH PUSH SPDT 0.03A 12V

Deep-Dive with AI

Search across all available documentation for this part.

5511MGRYX

Active

E-Switch

SWITCH PUSH SPDT 0.03A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5511MGRYX

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Current Rating (Amps)	300 mA
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Keyswitch
Voltage Rating - DC	12 V

5511 Series

Part	Mechanical Life	Switch Function	Color - Actuator/Cap	Actuator Type	Current Rating (Amps)	Illumination Type, Color	Actuator Marking	Type	Voltage Rating - DC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Mounting Type	Circuit
E-Switch 5511MBLKYEL	500000 Cycles	On-Mom	Black	Button Square	300 mA	LED Yellow	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MGRNX	500000 Cycles	On-Mom	Green	Button Square	300 mA		No Marking	Keyswitch	12 V	PC Pin	65 °C	-25 °C		Through Hole	SPDT
E-Switch 5511MGRYYELGRN	500000 Cycles	On-Mom		Button Square	300 mA	Green LED Yellow	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MWHTGRN	500000 Cycles	On-Mom	White	Button Square	300 mA	Green LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MBLKREDGRN	500000 Cycles	On-Mom	Black	Button Square	300 mA	Green/Red LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MWHTREDGRN	500000 Cycles	On-Mom	White	Button Square	300 mA	Green/Red LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MREDREDGRN	500000 Cycles	On-Mom	Red	Button Square	300 mA	Green/Red LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MREDX	500000 Cycles	On-Mom	Red	Button Square	300 mA		No Marking	Keyswitch	12 V	PC Pin	65 °C	-25 °C		Through Hole	SPDT
E-Switch 5511MGRYX	500000 Cycles	On-Mom		Button Square	300 mA		No Marking	Keyswitch	12 V	PC Pin	65 °C	-25 °C		Through Hole	SPDT
E-Switch 5511MGRYRED	500000 Cycles	On-Mom		Button Square	300 mA	LED Red	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.15
		10	$ 3.71
		500	$ 2.82
		1000	$ 2.70

Description

General part information

5511 Series

Pushbutton Switch SPDT Keyswitch Through Hole

Documents

Technical documentation and resources

No documents available
