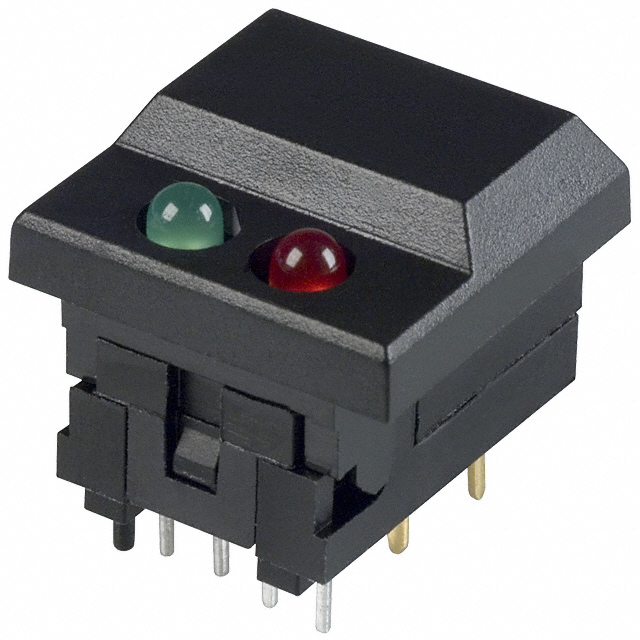

5511MBLKREDGRN

Active

E-Switch

SWITCH PUSH SPDT 0.03A 12V

Deep-Dive with AI

Search across all available documentation for this part.

5511MBLKREDGRN

Active

E-Switch

SWITCH PUSH SPDT 0.03A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5511MBLKREDGRN

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	300 mA
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2.2 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Keyswitch, Illuminated
Voltage Rating - DC	12 V

5511 Series

Part	Mechanical Life	Switch Function	Color - Actuator/Cap	Actuator Type	Current Rating (Amps)	Illumination Type, Color	Actuator Marking	Type	Voltage Rating - DC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Mounting Type	Circuit
E-Switch 5511MBLKYEL	500000 Cycles	On-Mom	Black	Button Square	300 mA	LED Yellow	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MGRNX	500000 Cycles	On-Mom	Green	Button Square	300 mA		No Marking	Keyswitch	12 V	PC Pin	65 °C	-25 °C		Through Hole	SPDT
E-Switch 5511MGRYYELGRN	500000 Cycles	On-Mom		Button Square	300 mA	Green LED Yellow	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MWHTGRN	500000 Cycles	On-Mom	White	Button Square	300 mA	Green LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MBLKREDGRN	500000 Cycles	On-Mom	Black	Button Square	300 mA	Green/Red LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MWHTREDGRN	500000 Cycles	On-Mom	White	Button Square	300 mA	Green/Red LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MREDREDGRN	500000 Cycles	On-Mom	Red	Button Square	300 mA	Green/Red LED	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT
E-Switch 5511MREDX	500000 Cycles	On-Mom	Red	Button Square	300 mA		No Marking	Keyswitch	12 V	PC Pin	65 °C	-25 °C		Through Hole	SPDT
E-Switch 5511MGRYX	500000 Cycles	On-Mom		Button Square	300 mA		No Marking	Keyswitch	12 V	PC Pin	65 °C	-25 °C		Through Hole	SPDT
E-Switch 5511MGRYRED	500000 Cycles	On-Mom		Button Square	300 mA	LED Red	No Marking	Keyswitch Illuminated	12 V	PC Pin	65 °C	-25 °C	2.2 VDC	Through Hole	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.13
		10	$ 3.56
		25	$ 3.36
		50	$ 3.21
		100	$ 3.16

Description

General part information

5511 Series

Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole

Documents

Technical documentation and resources

No documents available
