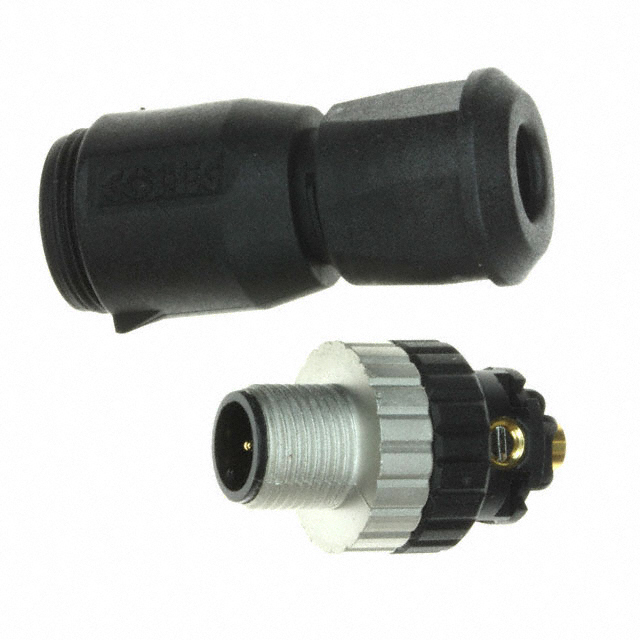

43-00102

Active

Amphenol CONEC

SENSOR CONN, M12, PLUG, 5POS, SCREW ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

SENSOR CONN, M12, PLUG, 5POS, SCREW ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	43-00102

Backshell Material, Plating	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA6), Nylon 6
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Plastic
Shell Material	Polyamide (PA6), Nylon 6, Glass Filled
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 VDC

Part	Primary Material	Shell Material	Backshell Material, Plating	Current Rating (Amps)	Insert Material	Number of Positions	Features	Shell Size - Insert	Ingress Protection	Contact Material	Shielding	Color	Voltage Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Contact Finish - Mating	Connector Type	Material Flammability Rating
Amphenol CONEC 43-00100	Plastic	Polyamide (PA6) Nylon 6 Glass Filled	Glass Filled Nylon 6 Polyamide (PA6)	4 A	Polyamide (PA6) Nylon 6	4	Backshell	M12-4	IP67 - Dust Tight Waterproof	Copper Zinc	Unshielded	Black Silver	250 VDC	8 mm	6 mm	0.315 in	0.236 in	A	-30 ░C	85 °C	Free Hanging (In-Line)	Screw	Gold	Male Pins Receptacle	UL94
Amphenol CONEC 43-00102	Plastic	Polyamide (PA6) Nylon 6 Glass Filled	Glass Filled Nylon 6 Polyamide (PA6)	4 A	Polyamide (PA6) Nylon 6		Backshell	M12-5	IP67 - Dust Tight Waterproof	Copper Zinc	Unshielded	Black Silver	60 VDC	8 mm	6 mm	0.315 in	0.236 in	A	-30 ░C	85 °C	Free Hanging (In-Line)	Screw	Gold	Male Pins Receptacle	UL94
Amphenol CONEC 43-00106	Plastic	Polyamide (PA6) Nylon 6 Glass Filled		4 A	Polyamide (PA6) Nylon 6			M12-5	IP67 - Dust Tight Waterproof	Copper Zinc	Unshielded	Black Silver	60 VDC	8 mm	6 mm	0.315 in	0.236 in	A	-30 ░C	85 °C	Free Hanging (In-Line) Right Angle	Screw	Gold	Male Pins Receptacle	UL94

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Screw
