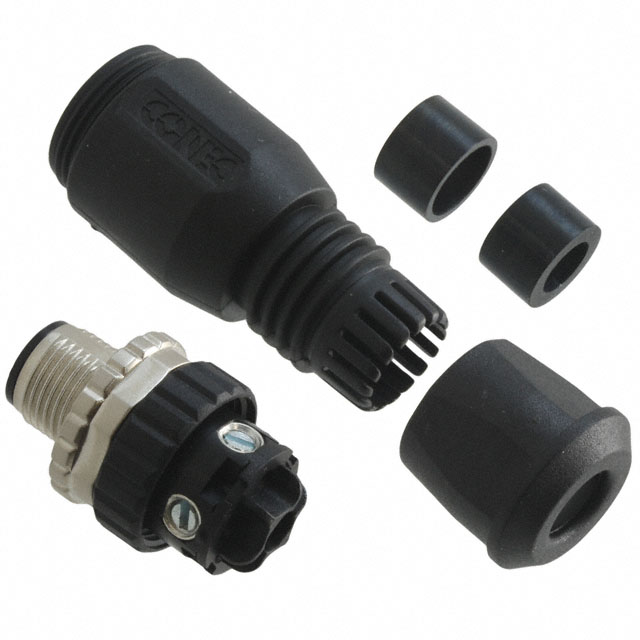

43-00100
ActiveAmphenol CONEC
CONN RCPT MALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43-00100
ActiveAmphenol CONEC
CONN RCPT MALE 4POS GOLD SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43-00100 |
|---|---|
| Backshell Material, Plating | Nylon 6, Polyamide (PA6), Glass Filled |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 4 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA6), Nylon 6 |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA6), Nylon 6, Glass Filled |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.13 | |
| 10 | $ 8.22 | |||
| 25 | $ 7.74 | |||
| 50 | $ 7.54 | |||
| 100 | $ 7.34 | |||
| 250 | $ 6.55 | |||
| 500 | $ 6.15 | |||
| 1000 | $ 5.44 | |||
Description
General part information
43-0010 Series
4 Position Circular Connector Receptacle, Male Pins Screw
