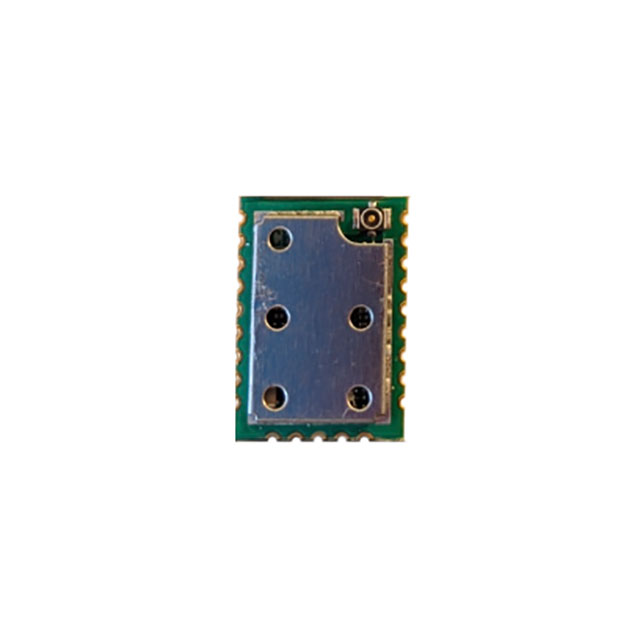

CMP9377-SC

Active

CEL

RF TXRX MOD BLUETOOTH WIFISMD

Search across all available documentation for this part.

Active

CEL

RF TXRX MOD BLUETOOTH WIFISMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMP9377-SC	CMP9377 Series

Antenna Type	Antenna Not Included	Antenna Not Included, Integrated, Chip
For Use With/Related Products	-	CMP9377
Frequency	5 GHz, 2.4 GHz	2.4 - 5 GHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	20 dBm	20 dBm
Protocol	802.11a/b/g/n/ac, Bluetooth v5.0	802.11a/b/g/n/ac, Bluetooth v5.0
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth
Serial Interfaces	SDIO, UART	SDIO, UART, USB
Supplied Contents	-	Board(s)
Type	-	Bluetooth® 5.x (BLE), Transceiver, 802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN)
Voltage - Supply	3.3 V	3.3 V

RF TXRX MOD BLUETOOTH WIFISMD

Part	Voltage - Supply	Mounting Type	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Protocol	Package / Case	Frequency	RF Family/Standard	Power - Output	Type	Supplied Contents	For Use With/Related Products
CEL CMP9377-SC	3.3 V	Surface Mount	SDIO, UART	85 °C	-40 °C	Antenna Not Included	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-UC	3.3 V	Surface Mount	USB	85 °C	-40 °C	Antenna Not Included	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-UA	3.3 V	Surface Mount	USB	85 °C	-40 °C	Integrated, Chip	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-S-EVB									2.4 GHz, 5 GHz			802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	Board(s)	CMP9377
CEL CMP9377-SA	3.3 V	Surface Mount	SDIO, UART	85 °C	-40 °C	Integrated, Chip	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-U-EVB									2.4 GHz, 5 GHz			802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	Board(s)	CMP9377

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	390	$ 31.11

General part information

Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
