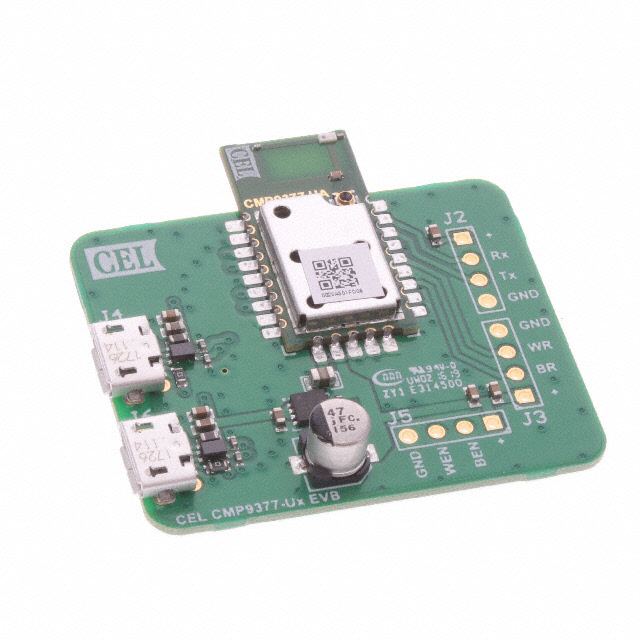

CMP9377-U-EVB

Active

CEL

USB EVAL BOARD

Search across all available documentation for this part.

Active

CEL

USB EVAL BOARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 63.12

General part information

CMP9377 - Transceiver; 802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE) 2.4GHz, 5GHz Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CMP9377-U-EVB	CMP9377 Series

Antenna Type	-	Antenna Not Included, Integrated, Chip
For Use With/Related Products	CMP9377	CMP9377
Frequency	5 GHz, 2.4 GHz	2.4 - 5 GHz
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	20 dBm
Protocol	-	802.11a/b/g/n/ac, Bluetooth v5.0
RF Family/Standard	-	WiFi, Bluetooth
Serial Interfaces	-	SDIO, UART, USB
Supplied Contents	Board(s)	Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN)	Bluetooth® 5.x (BLE), Transceiver, 802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN)
Voltage - Supply	-	3.3 V

RF TXRX MOD BLUETOOTH WIFISMD

Part	Voltage - Supply	Mounting Type	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Protocol	Package / Case	Frequency	RF Family/Standard	Power - Output	Type	Supplied Contents	For Use With/Related Products
CEL CMP9377-SC	3.3 V	Surface Mount	SDIO, UART	85 °C	-40 °C	Antenna Not Included	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-UC	3.3 V	Surface Mount	USB	85 °C	-40 °C	Antenna Not Included	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-UA	3.3 V	Surface Mount	USB	85 °C	-40 °C	Integrated, Chip	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-S-EVB									2.4 GHz, 5 GHz			802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	Board(s)	CMP9377
CEL CMP9377-SA	3.3 V	Surface Mount	SDIO, UART	85 °C	-40 °C	Integrated, Chip	802.11a/b/g/n/ac, Bluetooth v5.0	Module	2.4 GHz, 5 GHz	Bluetooth, WiFi	20 dBm
CEL CMP9377-U-EVB									2.4 GHz, 5 GHz			802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	Board(s)	CMP9377
