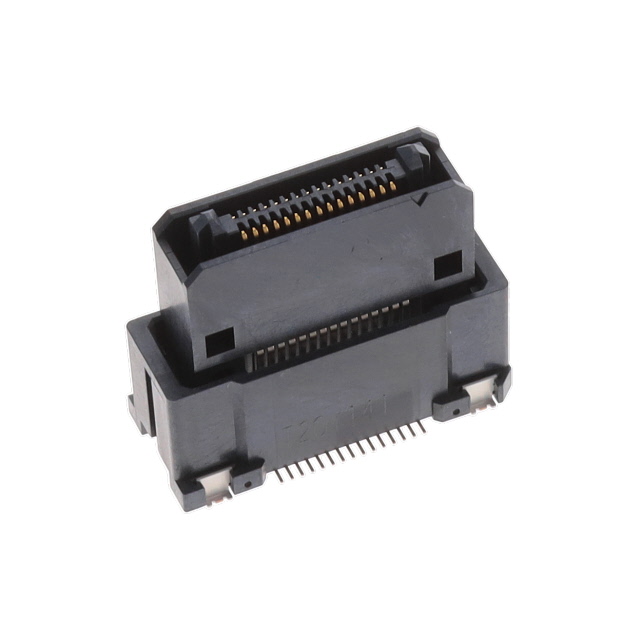

AX01F030VACBR150
ActiveJAE Electronics
FLOATING SIDE B2B CONNECTOR, 30
Deep-Dive with AI
Search across all available documentation for this part.
AX01F030VACBR150
ActiveJAE Electronics
FLOATING SIDE B2B CONNECTOR, 30
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AX01F030VACBR150 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 18.3 mm |
| Height Above Board | 0.72 " |
| Mated Stacking Heights [Max] | 30 mm |
| Mated Stacking Heights [Min] | 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.62 | |
| 10 | $ 5.11 | |||
| 25 | $ 4.84 | |||
| 50 | $ 4.72 | |||
| Digi-Reel® | 1 | $ 6.55 | ||
| 10 | $ 5.02 | |||
| 25 | $ 4.52 | |||
| 50 | $ 4.19 | |||
| Tape & Reel (TR) | 150 | $ 2.68 | ||
| 300 | $ 2.36 | |||
Description
General part information
AX01F030 Series
30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
