AX01F030VABBR300

Active

JAE Electronics

FLOATING SIDE B2B CONNECTOR, 30

Search across all available documentation for this part.

Active

JAE Electronics

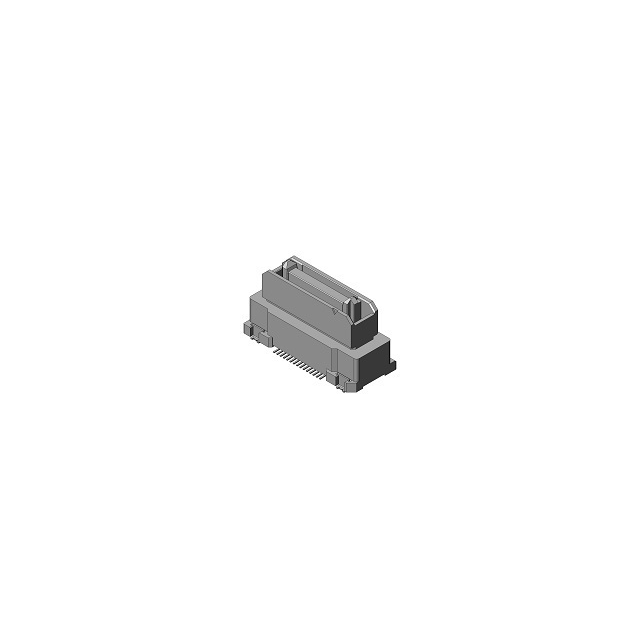

FLOATING SIDE B2B CONNECTOR, 30

Technical Specifications

Parameters and characteristics for this part

Specification	AX01F030VABBR300

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Number of Positions	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Contact Finish	Mounting Type	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]	Height Above Board	Height Above Board
JAE Electronics AX01F030VABBR300	30	Board Guide Solder Retention	0.64 mm	0.025 in	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	Gold	Surface Mount
JAE Electronics AX01F030VACBR150	30	Board Guide Solder Retention	0.64 mm	0.025 in	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	Gold	Surface Mount	8 mm	30 mm	18.3 mm	0.72 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
