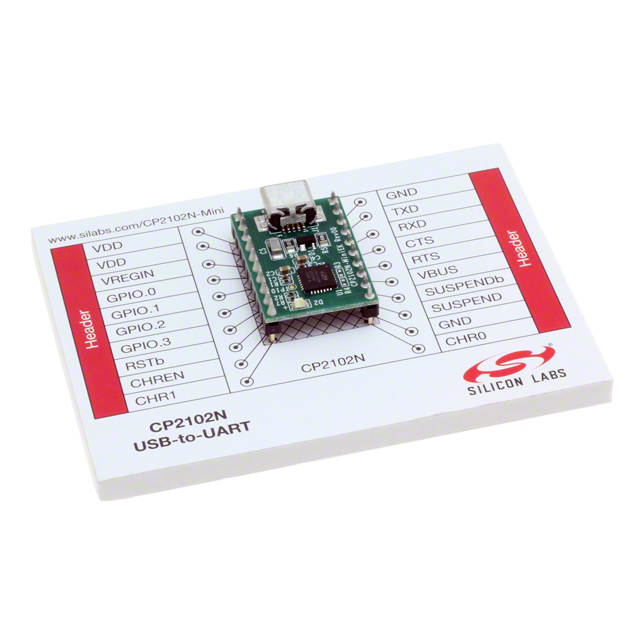

CP2102N-MINIEK

Active

Silicon Labs

EVAL BOARD FOR CP2102N

Search across all available documentation for this part.

Active

Silicon Labs

EVAL BOARD FOR CP2102N

Technical Specifications

Parameters and characteristics for this part

Specification	CP2102N-MINIEK

Contents	Board(s)
Function	USB 2.0 to UART (RS232) Bridge
Secondary Attributes	Graphical User Interface (GUI)
Type	Interface
Utilized IC / Part	CP2102N

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Package / Case	Function	Supplier Device Package	Current - Supply	Protocol	Type	Contents	Secondary Attributes	Utilized IC / Part
Silicon Labs CP2102N-A02-GQFN28	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-WFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)	9.5 mA	USB
Silicon Labs CP2102-GMR	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-VFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)		USB
Silicon Labs CP2102N-MINIEK								USB 2.0 to UART (RS232) Bridge				Interface	Board(s)	Graphical User Interface (GUI)	CP2102N
Silicon Labs CP2102-GM	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-VFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)		USB
Silicon Labs CP2102N-A02-GQFN20R	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	20-WFQFN Exposed Pad	Bridge USB to UART	20-QFN (3x3)	9.5 mA	USB
Silicon Labs CP2102N-A02-GQFN24	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	24-VFQFN Exposed Pad	Bridge USB to UART	24-QFN (4x4)	9.5 mA	USB
Silicon Labs CP2102N-A02-GQFN24R	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	24-VFQFN Exposed Pad	Bridge USB to UART	24-QFN (4x4)	9.5 mA	USB
Silicon Labs CP2102N-A02-GQFN28R	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-WFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)	9.5 mA	USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.85

General part information

CP2102N USBXpress™ USB 2.0 to UART (RS232) Bridge Interface Evaluation Board

Technical documentation and resources
