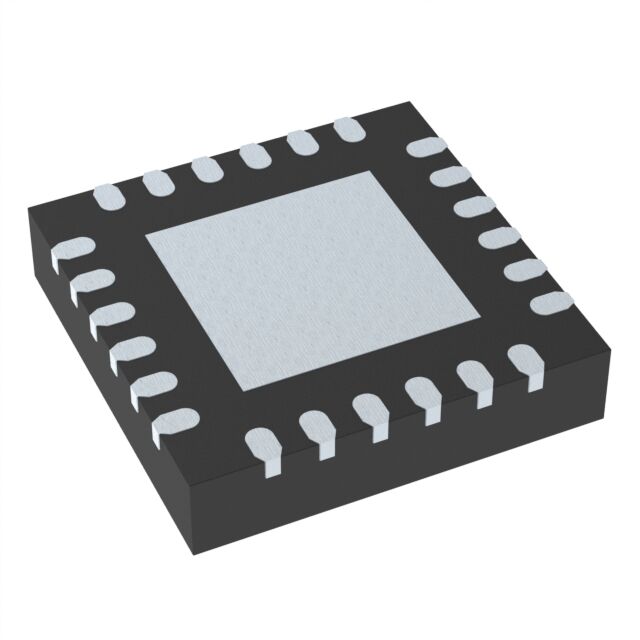

CP2102N-A02-GQFN24

Active

Silicon Labs

IC USB TO UART BRIDGE QFN24

Search across all available documentation for this part.

Active

Silicon Labs

IC USB TO UART BRIDGE QFN24

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Package / Case	Function	Supplier Device Package	Current - Supply	Protocol	Type	Contents	Secondary Attributes	Utilized IC / Part
Silicon Labs CP2102N-A02-GQFN28	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-WFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)	9.5 mA	USB
Silicon Labs CP2102-GMR	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-VFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)		USB
Silicon Labs CP2102N-MINIEK								USB 2.0 to UART (RS232) Bridge				Interface	Board(s)	Graphical User Interface (GUI)	CP2102N
Silicon Labs CP2102-GM	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-VFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)		USB
Silicon Labs CP2102N-A02-GQFN20R	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	20-WFQFN Exposed Pad	Bridge USB to UART	20-QFN (3x3)	9.5 mA	USB
Silicon Labs CP2102N-A02-GQFN24	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	24-VFQFN Exposed Pad	Bridge USB to UART	24-QFN (4x4)	9.5 mA	USB
Silicon Labs CP2102N-A02-GQFN24R	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	24-VFQFN Exposed Pad	Bridge USB to UART	24-QFN (4x4)	9.5 mA	USB
Silicon Labs CP2102N-A02-GQFN28R	3.6 V	3 V	UART	85 °C	-40 °C	USB 2.0	28-WFQFN Exposed Pad	Bridge USB to UART	28-QFN (5x5)	9.5 mA	USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB Bridge, USB to UART USB 2.0 UART Interface 24-QFN (4x4)

Technical documentation and resources
