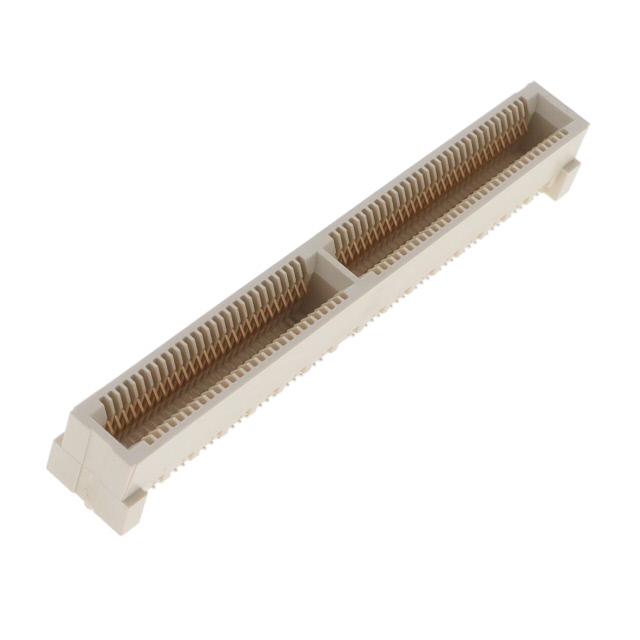

HSEC8-160-03-S-DV-A-K-TR

Active

Samtec Inc.

CONN EDGE DUAL FML 120POS 0.031

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHSEC8 Series Other Related Documents 01 HSEC8 Datasheet +1

HSEC8-160-03-S-DV-A-K-TR

Active

Samtec Inc.

CONN EDGE DUAL FML 120POS 0.031

Deep-Dive with AI

DocumentsHSEC8 Series Other Related Documents 01 HSEC8 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSEC8-160-03-S-DV-A-K-TR

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Contact Type	Cantilever
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	120
Number of Positions/Bay/Row [custom]	60
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

HSEC8-160 Series

Part	Card Type	Read Out	Termination	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Gender	Number of Rows	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Material	Contact Type	Color	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Mounting Type
Samtec Inc. HSEC8-160-03-S-DV-A	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.093 in	2.36 mm	0.76 Ám	30 Áin	Board Guide	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-01-L-DV-GR-K-TR	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.25 Ám	10 Áin	Card Guides	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-01-S-DV-A-K-TR	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.76 Ám	30 Áin	Board Guide Locking Ramp	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-01-S-RA-TR	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.76 Ám	30 Áin		Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount Right Angle
Samtec Inc. HSEC8-160-01-L-DV-A-TR	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.25 Ám	10 Áin	Board Guide	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-01-S-DV-TR	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.76 Ám	30 Áin		Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-01-SM-DV-A-K	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.76 Ám	30 Áin	Board Guide	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-01-L-DV-A-WT	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.25 Ám	10 Áin	Board Guide Solder Retention	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-01-L-DV-A-GR-K-TR	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.062 in	1.57 mm	0.25 Ám	10 Áin	Board Guide Card Guide	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount
Samtec Inc. HSEC8-160-03-S-DV-A-K-TR	Non Specified - Dual Edge	Dual	Solder	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	60	Female	2	0.093 in	2.36 mm	0.76 Ám	30 Áin	Board Guide	Beryllium Copper	Cantilever	Black	0.8 mm	0.031 in	Gold	120	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.94
		10	$ 6.41
		25	$ 6.06
		50	$ 5.84
	Tape & Reel (TR)	175	$ 4.55
		525	$ 4.02

Description

General part information

HSEC8-160 Series

120 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
