Technical Specifications
Parameters and characteristics commom to parts in this series

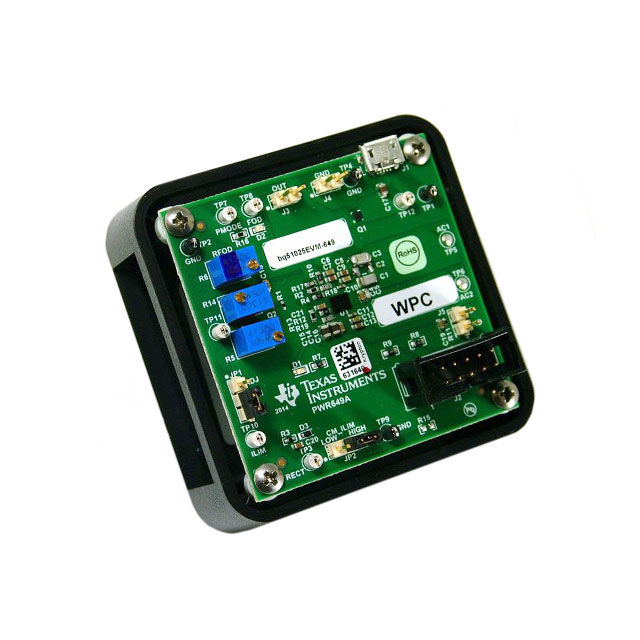

| Specification | BQ51025EVM-649 | BQ51025 Series |
|---|---|---|
| Applications | - | Wireless Power Receiver |
| Contents | Board(s) | Board(s) |
| Embedded | False | False |
| Function | Wireless Power Supply/Charging | Wireless Power Supply/Charging |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 42-XFBGA, DSBGA |
| Primary Attributes | Receiver | Receiver |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 42-DSBGA |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ51025 | BQ51025 |
| Voltage - Supply | - | 11 V |
| Voltage - Supply | - | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ51025 Series
bq51025 10-W WPC Compliant Single Chip Wireless Power Receiver
| Part | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Applications | Contents | Supplied Contents | Secondary Attributes | Embedded | Type | Primary Attributes | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ51025YFPR | Surface Mount | 42-XFBGA, DSBGA | 125 °C | -40 °C | 11 V | 4 V | 42-DSBGA | Wireless Power Receiver | ||||||||
Texas Instruments BQ51025YFPT | Surface Mount | 42-XFBGA, DSBGA | 125 °C | -40 °C | 11 V | 4 V | 42-DSBGA | Wireless Power Receiver | ||||||||
Texas Instruments BQ51025EVM-649 | Board(s) | Board(s) | On-Board LEDs | Power Management | Receiver | BQ51025 | Wireless Power Supply/Charging |
Description
General part information
BQ51025 Series
The bq51025 device is a fully-contained wireless power receiver capable of operating in the Wireless Power Consortium (WPC) Qi protocol, which allows a wireless power system to deliver 5 W to the system with Qi inductive transmitters and up to 10 W when operating with the bq500215 primary-side controller. The bq51025 device provides a single device power conversion (rectification and regulation) as well as the digital control and communication as per WPC v1.2 specification. With market-leading 84% system efficiency and adjustable output voltage, the bq51025 device allows for unparalleled system optimization. With a maximum output voltage of 10 V, the bq51025 offers a flexible solution that offers a wireless power solution for 2S battery application and allows optimal thermal performance of the system. The I2C interface allows system designers to implement new features such as aligning a receiver on the transmitter surface or detecting foreign objects on the receiver. The bq51025 device complies with the WPC v1.2 communication protocol making it compatible with all WPC transmitter solutions. The receiver allows for synchronous rectification, regulation and control, and communication to all exist in a market-leading form factor, efficiency, and solution size.
The bq51025 device is a fully-contained wireless power receiver capable of operating in the Wireless Power Consortium (WPC) Qi protocol, which allows a wireless power system to deliver 5 W to the system with Qi inductive transmitters and up to 10 W when operating with the bq500215 primary-side controller. The bq51025 device provides a single device power conversion (rectification and regulation) as well as the digital control and communication as per WPC v1.2 specification. With market-leading 84% system efficiency and adjustable output voltage, the bq51025 device allows for unparalleled system optimization. With a maximum output voltage of 10 V, the bq51025 offers a flexible solution that offers a wireless power solution for 2S battery application and allows optimal thermal performance of the system. The I2C interface allows system designers to implement new features such as aligning a receiver on the transmitter surface or detecting foreign objects on the receiver. The bq51025 device complies with the WPC v1.2 communication protocol making it compatible with all WPC transmitter solutions. The receiver allows for synchronous rectification, regulation and control, and communication to all exist in a market-leading form factor, efficiency, and solution size.
