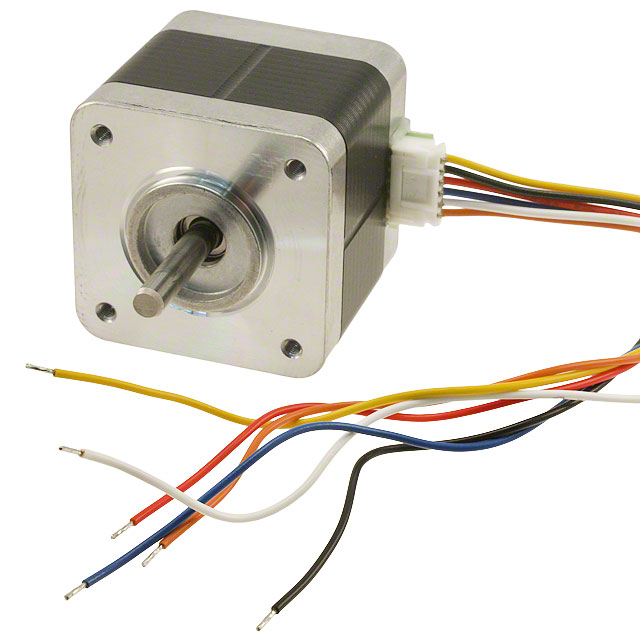

17PM-K845-00VS
ActiveSTEPPER MOTOR, STANDARD HYBRID, 270 MN-M, 1.2 A
Deep-Dive with AI
Search across all available documentation for this part.
17PM-K845-00VS
ActiveSTEPPER MOTOR, STANDARD HYBRID, 270 MN-M, 1.2 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 17PM-K845-00VS |
|---|---|
| Coil Resistance | 2.9 Ohms |
| Coil Type | Unipolar |
| Current Rating (Amps) | 1.2 A |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Features | Flatted Shaft |
| Length - Shaft and Bearing | 0.984 in |
| Length - Shaft and Bearing | 25 mm |
| Mounting Hole Spacing | 1.22 in |
| Mounting Hole Spacing | 31 mm |
| NEMA Frame Size | 17 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Rotor Inertia | 55 gcm˛ |
| Size / Dimension [x] | 42 mm |
| Size / Dimension [x] | 1.654 in |
| Size / Dimension [y] | 1.654 " |
| Size / Dimension [y] | 42 mm |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 270 mNm |
| Torque - Holding (oz-in / mNm) | 38.24 oz-in |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
| Weight | 300.28 g |
| Weight | 0.662 lb |
17PM Series
| Part | Step Angle | Steps per Revolution | Voltage - Rated | Features | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Termination Style | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Coil Type | Type | Current Rating (Amps) | Rotor Inertia | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Coil Resistance | Mounting Hole Spacing | Mounting Hole Spacing | NEMA Frame Size | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Length - Shaft and Bearing | Length - Shaft and Bearing | Weight | Weight | Torque - Holding (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Round Shaft | 14.16 oz-in | 100 mNm | Connector | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid | 800 mA | 24 gcmý | 0.197 in | 5 mm | 24 mm | 0.945 in | 2.7 Ohms | 1.22 in | 31 mm | 17 | |||||||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Flatted Shaft | 38.24 oz-in | 270 mNm | Wire Leads | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid Dual Shaft | 750 mA | 55 gcm˛ | 0.197 in | 5 mm | 7.4 Ohms | 1.22 in | 31 mm | 17 | -10 °C | 50 °C | 0.984 in | 25 mm | 300.28 g | 0.662 lb | |||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Round Shaft | 39.66 oz-in | Connector | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid | 1 A | 62 gcmý | 0.197 in | 5 mm | 24 mm | 0.945 in | 4.3 Ohms | 1.22 in | 31 mm | 17 | 280 mNm | |||||||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Flatted Shaft | 24.08 oz-in | 170 mNm | Wire Leads | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid Dual Shaft | 0.85 A | 37 gcm˛ | 0.197 in | 5 mm | 4.2 Ohms | 1.22 in | 31 mm | 17 | -10 °C | 50 °C | 0.984 in | 25 mm | 200.03 g | 0.441 lb | |||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Round Shaft | 43.9 oz-in | 310 mNm | Connector | 42 mm | 1.654 " | 1.654 in | 42 mm | Bipolar | Hybrid | 900 mA | 50 gcm² | 0.197 in | 5 mm | 24 mm | 0.945 in | 4 Ohms | 1.22 in | 31 mm | 17 | |||||||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Flatted Shaft | 38.24 oz-in | 270 mNm | Wire Leads | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid | 1.2 A | 55 gcm˛ | 0.197 in | 5 mm | 2.9 Ohms | 1.22 in | 31 mm | 17 | -10 °C | 50 °C | 0.984 in | 25 mm | 300.28 g | 0.662 lb | |||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Round Shaft | 56.66 oz-in | 400 mNm | Connector | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid | 1 A | 75 gcm˛ | 0.197 in | 5 mm | 24 mm | 0.945 in | 4.9 Ohms | 1.22 in | 31 mm | 17 | |||||||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Round Shaft | 14.16 oz-in | 100 mNm | Connector | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid | 600 mA | 24 gcmý | 0.197 in | 5 mm | 24 mm | 0.945 in | 6.9 Ohms | 1.22 in | 31 mm | 17 | |||||||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Round Shaft | 70.82 oz-in | 500 mNm | Connector | 42 mm | 1.654 " | 1.654 in | 42 mm | Bipolar | Hybrid | 900 mA | 75 gcm˛ | 0.197 in | 5 mm | 24 mm | 0.945 in | 5.6 Ohms | 1.22 in | 31 mm | 17 | |||||||
NMB TECHNOLOGIES | 1.8 ° | 200 | 24 VDC | Round Shaft | 35.41 oz-in | 250 mNm | Connector | 42 mm | 1.654 " | 1.654 in | 42 mm | Unipolar | Hybrid | 1.4 A | 50 gcm² | 0.197 in | 5 mm | 24 mm | 0.945 in | 2 Ohms | 1.22 in | 31 mm | 17 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
17PM Series
Stepping motors rotate at fixed angles with digitally controlled electronic pulses and they are able to start, stop and position with good control characteristics. Hybrid-type stepping motors consist of a rotor with permanent magnets and magnetic bodies, and by using ball bearings they can perform highly precise and reliable motions. Stepping motors can be used in wide range of applications, such as copy machines, multifunction printers, medical equipments, semiconductor manufacturing equipments, factory automation equipments, robots and other industrial equipments.
