17PM-K858-99VS

Active

NMB TECHNOLOGIES

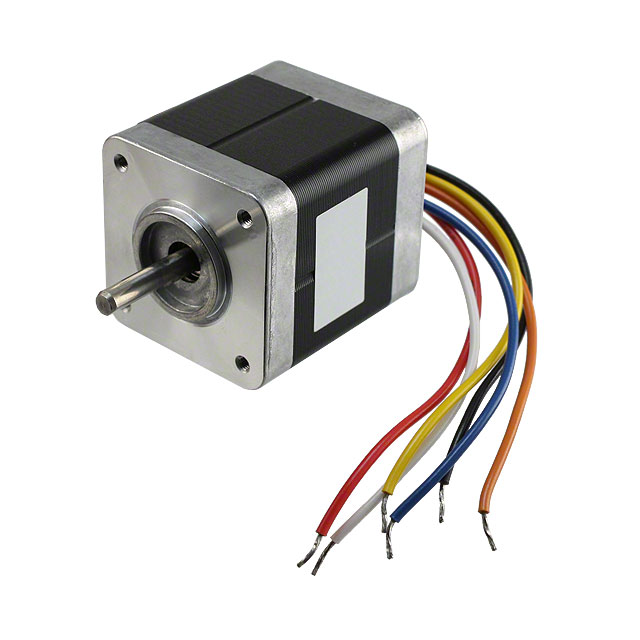

STEPPER MOTOR, STANDARD HYBRID, 270 MN-M, 750 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Hybrid Stepping Motor Standard Type +2

17PM-K858-99VS

Active

NMB TECHNOLOGIES

STEPPER MOTOR, STANDARD HYBRID, 270 MN-M, 750 MA

Deep-Dive with AI

DocumentsDatasheet Hybrid Stepping Motor Standard Type +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17PM-K858-99VS

Coil Resistance	7.4 Ohms
Coil Type	Unipolar
Current Rating (Amps)	750 mA
Diameter - Shaft [diameter]	0.197 in
Diameter - Shaft [diameter]	5 mm
Features	Flatted Shaft
Length - Shaft and Bearing	0.984 in
Length - Shaft and Bearing	25 mm
Mounting Hole Spacing	1.22 in
Mounting Hole Spacing	31 mm
NEMA Frame Size	17
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Rotor Inertia	55 gcm˛
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.654 "
Size / Dimension [y]	42 mm
Step Angle	1.8 °
Steps per Revolution	200
Termination Style	Wire Leads
Torque - Holding (oz-in / mNm)	270 mNm
Torque - Holding (oz-in / mNm)	38.24 oz-in
Type	Hybrid, Dual Shaft
Voltage - Rated	24 VDC
Weight	300.28 g
Weight	0.662 lb

17PM Series

Part	Step Angle	Steps per Revolution	Voltage - Rated	Features	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Coil Type	Type	Current Rating (Amps)	Rotor Inertia	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Coil Resistance	Mounting Hole Spacing	Mounting Hole Spacing	NEMA Frame Size	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Length - Shaft and Bearing	Length - Shaft and Bearing	Weight	Weight	Torque - Holding (oz-in / mNm)
NMB TECHNOLOGIES 17PM-K249U	1.8 °	200	24 VDC	Round Shaft	14.16 oz-in	100 mNm	Connector	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid	800 mA	24 gcmý	0.197 in	5 mm	24 mm	0.945 in	2.7 Ohms	1.22 in	31 mm	17
NMB TECHNOLOGIES 17PM-K858-99VS	1.8 °	200	24 VDC	Flatted Shaft	38.24 oz-in	270 mNm	Wire Leads	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid Dual Shaft	750 mA	55 gcm˛	0.197 in	5 mm			7.4 Ohms	1.22 in	31 mm	17	-10 °C	50 °C	0.984 in	25 mm	300.28 g	0.662 lb
NMB TECHNOLOGIES 17PM-K149U	1.8 °	200	24 VDC	Round Shaft		39.66 oz-in	Connector	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid	1 A	62 gcmý	0.197 in	5 mm	24 mm	0.945 in	4.3 Ohms	1.22 in	31 mm	17							280 mNm
NMB TECHNOLOGIES 17PM-K053-99VS	1.8 °	200	24 VDC	Flatted Shaft	24.08 oz-in	170 mNm	Wire Leads	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid Dual Shaft	0.85 A	37 gcm˛	0.197 in	5 mm			4.2 Ohms	1.22 in	31 mm	17	-10 °C	50 °C	0.984 in	25 mm	200.03 g	0.441 lb
NMB TECHNOLOGIES 17PM-K342B	1.8 °	200	24 VDC	Round Shaft	43.9 oz-in	310 mNm	Connector	42 mm	1.654 "	1.654 in	42 mm	Bipolar	Hybrid	900 mA	50 gcm²	0.197 in	5 mm	24 mm	0.945 in	4 Ohms	1.22 in	31 mm	17
NMB TECHNOLOGIES 17PM-K845-00VS	1.8 °	200	24 VDC	Flatted Shaft	38.24 oz-in	270 mNm	Wire Leads	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid	1.2 A	55 gcm˛	0.197 in	5 mm			2.9 Ohms	1.22 in	31 mm	17	-10 °C	50 °C	0.984 in	25 mm	300.28 g	0.662 lb
NMB TECHNOLOGIES 17PM-K449U	1.8 °	200	24 VDC	Round Shaft	56.66 oz-in	400 mNm	Connector	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid	1 A	75 gcm˛	0.197 in	5 mm	24 mm	0.945 in	4.9 Ohms	1.22 in	31 mm	17
NMB TECHNOLOGIES 17PM-K264U	1.8 °	200	24 VDC	Round Shaft	14.16 oz-in	100 mNm	Connector	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid	600 mA	24 gcmý	0.197 in	5 mm	24 mm	0.945 in	6.9 Ohms	1.22 in	31 mm	17
NMB TECHNOLOGIES 17PM-K442B	1.8 °	200	24 VDC	Round Shaft	70.82 oz-in	500 mNm	Connector	42 mm	1.654 "	1.654 in	42 mm	Bipolar	Hybrid	900 mA	75 gcm˛	0.197 in	5 mm	24 mm	0.945 in	5.6 Ohms	1.22 in	31 mm	17
NMB TECHNOLOGIES 17PM-K342U	1.8 °	200	24 VDC	Round Shaft	35.41 oz-in	250 mNm	Connector	42 mm	1.654 "	1.654 in	42 mm	Unipolar	Hybrid	1.4 A	50 gcm²	0.197 in	5 mm	24 mm	0.945 in	2 Ohms	1.22 in	31 mm	17

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 52.80
Newark	Each	1	$ 65.89

Description

General part information

17PM Series

Stepping motors rotate at fixed angles with digitally controlled electronic pulses and they are able to start, stop and position with good control characteristics. Hybrid-type stepping motors consist of a rotor with permanent magnets and magnetic bodies, and by using ball bearings they can perform highly precise and reliable motions. Stepping motors can be used in wide range of applications, such as copy machines, multifunction printers, medical equipments, semiconductor manufacturing equipments, factory automation equipments, robots and other industrial equipments.

17PM-K858-99VS

Deep-Dive with AI

17PM-K858-99VS

Deep-Dive with AI

Technical Specifications

17PM Series

Pricing

Description

17PM Series

Documents

Datasheet

Hybrid Stepping Motor Standard Type

MinebeaMitsumi Nylon PA66 Notification Letter

Technical Data Sheet EN

17PM Series
