61-6461.4057

Active

EAO

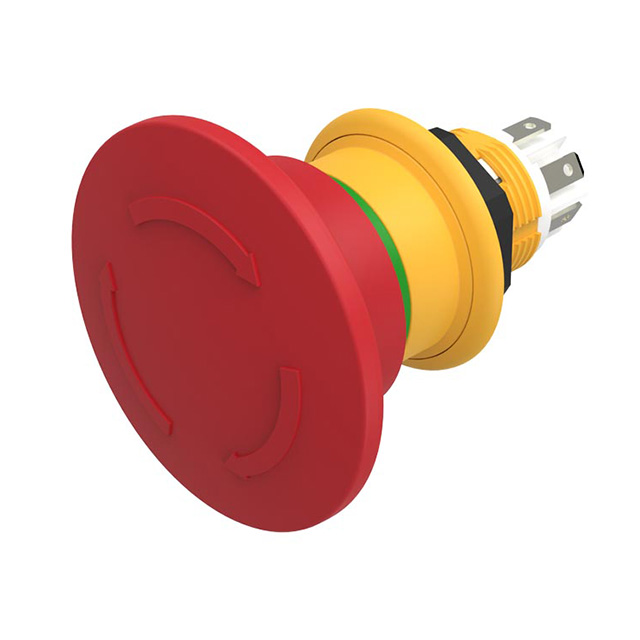

SWITCH E-STOP TWIST RESET

Search across all available documentation for this part.

Active

EAO

SWITCH E-STOP TWIST RESET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH E-STOP TWIST RESET

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	61-6461.4057	61-6461 Series

Circuit	DPST-NC	3PST-2NC/1NO, DPST-NC, 3PST-2NO/1NC, SPST-NC, 3PST-NC
Ingress Protection	IP69K, IP67	IP69K, IP67
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Reset Operation	Twist	Twist
Switch Function	On-Off	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm

SWITCH E-STOP TWIST RESET

Part	Operating Temperature [Max]	Operating Temperature [Min]	Reset Operation	Circuit	Ingress Protection	Mounting Type	Switch Function	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style
EAO 61-6461.4087	55 °C	-25 °C	Twist	3PST-2NC/1NO	IP67, IP69K	Panel Mount, Front	Off-On, On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4057	55 °C	-25 °C	Twist	DPST-NC	IP67, IP69K	Panel Mount, Front	On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4097	55 °C	-25 °C	Twist	3PST-2NO/1NC	IP67, IP69K	Panel Mount, Front	Off-On, On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4047	55 °C	-25 °C	Twist	SPST-NC	IP67, IP69K	Panel Mount, Front	On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4067	55 °C	-25 °C	Twist	3PST-NC	IP67, IP69K	Panel Mount, Front	On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
