61-6461.4067

Active

EAO

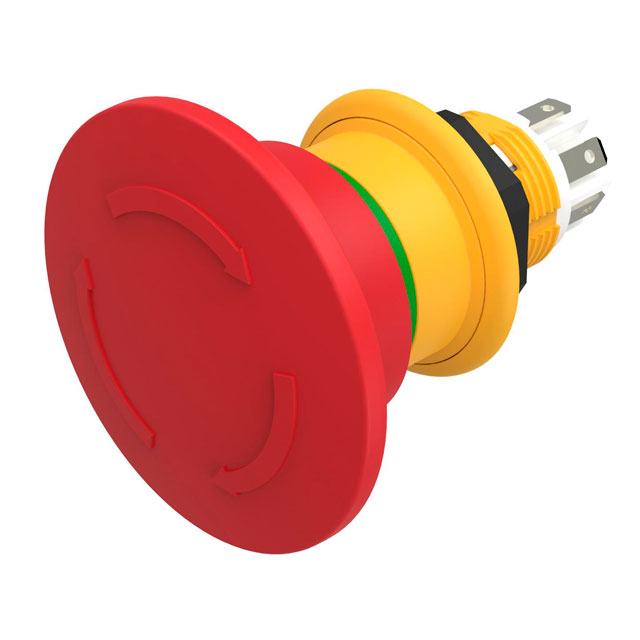

SWITCH E-STOP TWIST RESET

Search across all available documentation for this part.

Active

EAO

SWITCH E-STOP TWIST RESET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	61-6461.4067	61-6461 Series

Circuit	3PST-NC	3PST-2NC/1NO, DPST-NC, 3PST-2NO/1NC, SPST-NC, 3PST-NC
Ingress Protection	IP69K, IP67	IP69K, IP67
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Reset Operation	Twist	Twist
Switch Function	On-Off	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm

SWITCH E-STOP TWIST RESET

Part	Operating Temperature [Max]	Operating Temperature [Min]	Reset Operation	Circuit	Ingress Protection	Mounting Type	Switch Function	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style
EAO 61-6461.4087	55 °C	-25 °C	Twist	3PST-2NC/1NO	IP67, IP69K	Panel Mount, Front	Off-On, On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4057	55 °C	-25 °C	Twist	DPST-NC	IP67, IP69K	Panel Mount, Front	On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4097	55 °C	-25 °C	Twist	3PST-2NO/1NC	IP67, IP69K	Panel Mount, Front	Off-On, On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4047	55 °C	-25 °C	Twist	SPST-NC	IP67, IP69K	Panel Mount, Front	On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 61-6461.4067	55 °C	-25 °C	Twist	3PST-NC	IP67, IP69K	Panel Mount, Front	On-Off	16 mm	0.11 in	Quick Connect, Solder	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH E-STOP TWIST RESET
