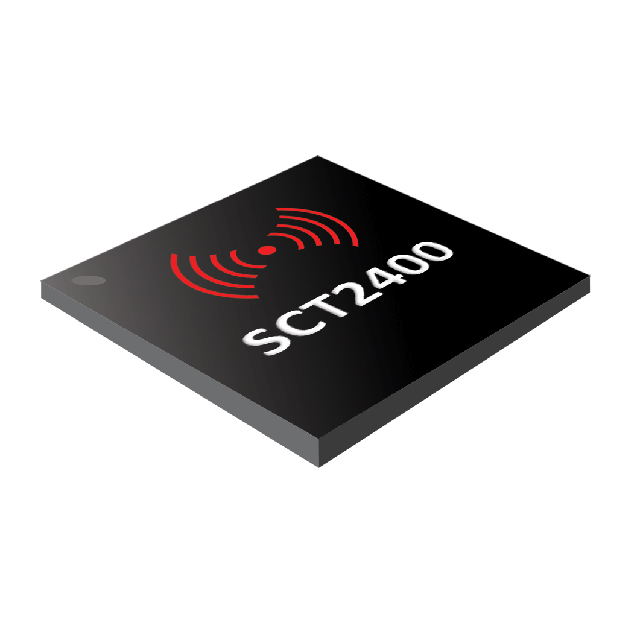

SCT2400HDA

Active

CML Micro

RF TXRX MODULE SURFACE MOUNT

Search across all available documentation for this part.

Active

CML Micro

RF TXRX MODULE SURFACE MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SCT2400HDA	SCT2400 Series

Current - Receiving	12.5 mA	12.5 mA
Current - Transmitting	24 mA	24 mA
Data Rate	3.6 kbps	3.6 kbps
For Use With/Related Products	-	SCT2400
Frequency	2.4 GHz	2.4 GHz
Modulation	OOK, FSK	OOK, FSK
Mounting Type	Surface Mount	Surface Mount
Package / Case	144-LFBGA	144-LFBGA
Power - Output	12 dBm	12 dBm
Sensitivity	-119 dBm	-119 dBm
Serial Interfaces	USB, I2C, I2S, UART	USB, I2C, I2S, UART
Supplied Contents	-	Board(s)
Type	-	Transceiver
Utilized IC / Part	SCT2400	SCT2400
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

2 EVAL BOARDS FOR SCT2400HDA

Part	Type	Supplied Contents	For Use With/Related Products	Frequency	Current - Receiving	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Serial Interfaces	Power - Output	Current - Transmitting	Mounting Type	Data Rate	Modulation	Package / Case
CML Micro SCT2400EVM	Transceiver	Board(s)	SCT2400	2.4 GHz
CML Micro SCT2400HDA				2.4 GHz	12.5 mA	-119 dBm	3.6 V	1.8 V	SCT2400	I2C, I2S, UART, USB	12 dBm	24 mA	Surface Mount	3.6 kbps	FSK, OOK	144-LFBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transceiver Module 2.4GHz Surface Mount

Technical documentation and resources

No documents available
