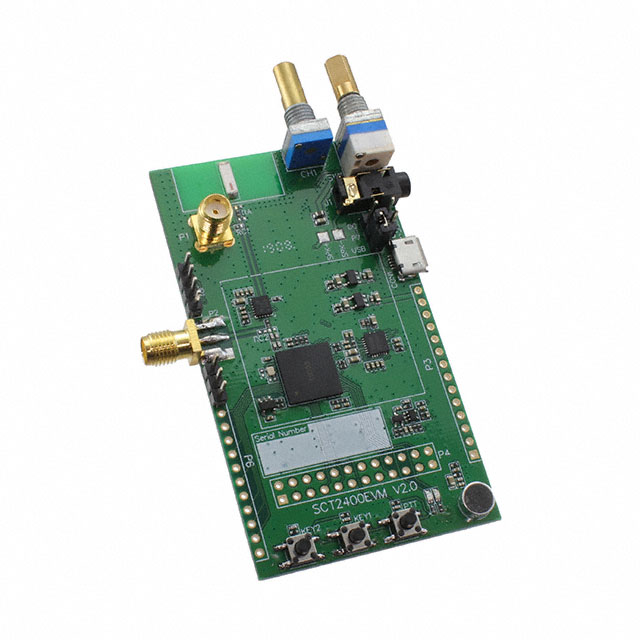

SCT2400EVM

Active

CML Micro

2 EVAL BOARDS FOR SCT2400HDA

Search across all available documentation for this part.

Active

CML Micro

2 EVAL BOARDS FOR SCT2400HDA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 170.12

General part information

- SCT2400 Transceiver 2.4GHz Evaluation Board

Technical documentation and resources

No documents available

Specification	SCT2400EVM	SCT2400 Series

Current - Receiving	-	12.5 mA
Current - Transmitting	-	24 mA
Data Rate	-	3.6 kbps
For Use With/Related Products	SCT2400	SCT2400
Frequency	2.4 GHz	2.4 GHz
Modulation	-	OOK, FSK
Mounting Type	-	Surface Mount
Package / Case	-	144-LFBGA
Power - Output	-	12 dBm
Sensitivity	-	-119 dBm
Serial Interfaces	-	USB, I2C, I2S, UART
Supplied Contents	Board(s)	Board(s)
Type	Transceiver	Transceiver
Utilized IC / Part	-	SCT2400
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.8 V

Part	Type	Supplied Contents	For Use With/Related Products	Frequency	Current - Receiving	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Serial Interfaces	Power - Output	Current - Transmitting	Mounting Type	Data Rate	Modulation	Package / Case
CML Micro SCT2400EVM	Transceiver	Board(s)	SCT2400	2.4 GHz
CML Micro SCT2400HDA				2.4 GHz	12.5 mA	-119 dBm	3.6 V	1.8 V	SCT2400	I2C, I2S, UART, USB	12 dBm	24 mA	Surface Mount	3.6 kbps	FSK, OOK	144-LFBGA
