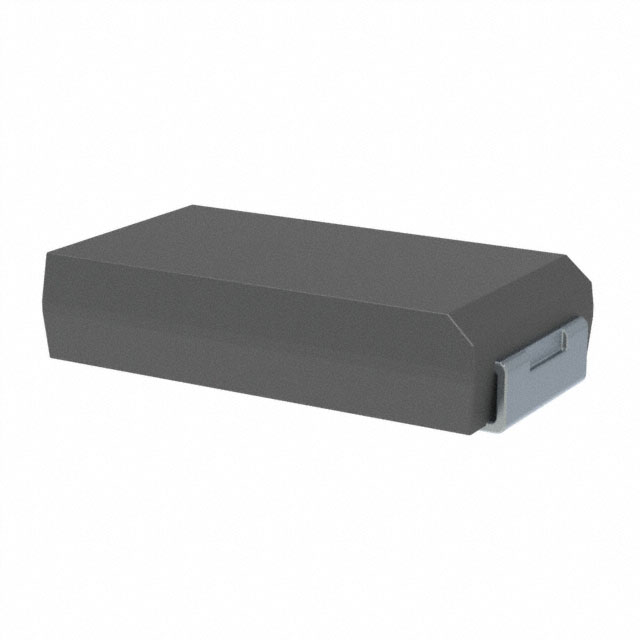

T520U157M006ATE055

Active

KEMET

CAP TANT POLY 150UF 6.3V 2312

Search across all available documentation for this part.

Active

KEMET

CAP TANT POLY 150UF 6.3V 2312

Technical Specifications

Parameters and characteristics for this part

Specification	T520U157M006ATE055

Capacitance	150 µF
ESR (Equivalent Series Resistance)	55 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	U
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Manufacturer Size Code	Type	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type	Tolerance	Capacitance
KEMET T520U157M006ATE055	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	55 mOhm	Surface Mount	20 %	150 µF
KEMET T520U476M010ATE055	105 ░C	-55 °C	10 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	55 mOhm	Surface Mount	20 %	47 µF
KEMET T520U686M006ATE070	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	70 mOhm	Surface Mount	20 %	68 µF
KEMET T520U686M006ATE055	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	55 mOhm	Surface Mount	20 %	68 µF
KEMET T520U157M006ATE045	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	45 mOhm	Surface Mount	20 %	150 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 µF Molded Tantalum Polymer Capacitor 6.3 V 2312 (6032 Metric) 55mOhm @ 100kHz
