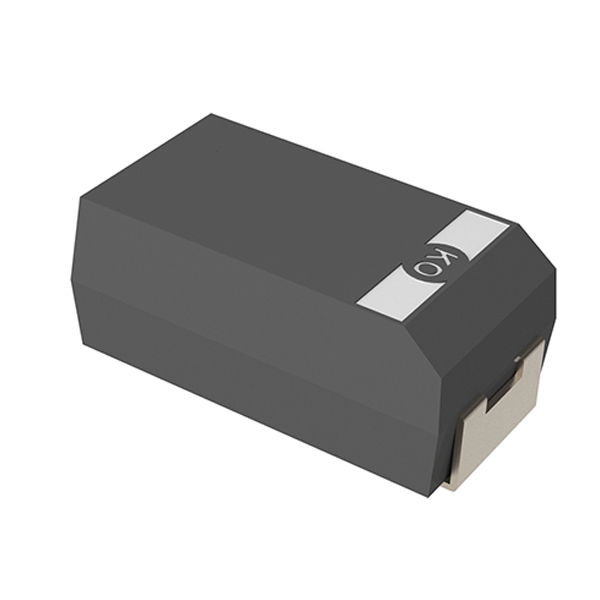

T520U686M006ATE055

Active

KEMET

TANTALUM CAPACITORS - POLYMER 6.3V 68UF 2312 20% ESR=55MOHMS

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITORS - POLYMER 6.3V 68UF 2312 20% ESR=55MOHMS

Technical Specifications

Parameters and characteristics for this part

Specification	T520U686M006ATE055

Capacitance	68 µF
ESR (Equivalent Series Resistance)	55 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	U
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Manufacturer Size Code	Type	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type	Tolerance	Capacitance
KEMET T520U157M006ATE055	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	55 mOhm	Surface Mount	20 %	150 µF
KEMET T520U476M010ATE055	105 ░C	-55 °C	10 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	55 mOhm	Surface Mount	20 %	47 µF
KEMET T520U686M006ATE070	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	70 mOhm	Surface Mount	20 %	68 µF
KEMET T520U686M006ATE055	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	55 mOhm	Surface Mount	20 %	68 µF
KEMET T520U157M006ATE045	105 ░C	-55 °C	6.3 V	U	Molded	General Purpose	1.5 mm	0.059 "	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	2000 Hrs	45 mOhm	Surface Mount	20 %	150 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 µF Molded Tantalum Polymer Capacitor 6.3 V 2312 (6032 Metric) 55mOhm @ 100kHz
