3220-26-0200-00

Active

CnC Tech, LLC

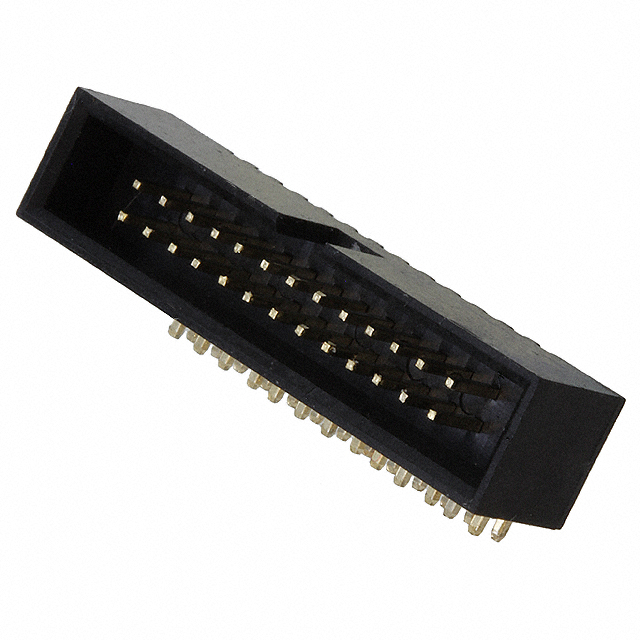

CONN HEADER R/A 26POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series IDC Header Mating Guide +2

3220-26-0200-00

Active

CnC Tech, LLC

CONN HEADER R/A 26POS 1.27MM

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series IDC Header Mating Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3220-26-0200-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.083 in
Contact Length - Post	2.11 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.201 "
Insulation Height [z]	5.1 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

3220-26 Series

Part	Voltage Rating	Contact Finish Thickness - Mating	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Contact Finish - Mating	Style	Insulation Material	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Features	Insulation Color	Contact Type	Mounting Type	Number of Rows	Insulation Height	Insulation Height [z]	Contact Material	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Height [z]
CnC Tech, LLC 3220-26-0100-00	50 VAC	Flash	Shrouded - 4 Wall	Header	0.05 in	1.27 mm	Square	Solder	Gold	Board to Cable/Wire	Nylon 9T Polyamide (PA9T)	UL94 V-0	0.083 in	2.11 mm	26	All	-40 °C	105 ░C	0.05 in	1.27 mm	Push-Pull	Keying Slot	Black	Male Pin	Through Hole	2	5.4 mm	0.213 in	Brass
CnC Tech, LLC 3220-26-0300-00	50 VAC	Flash	Shrouded - 4 Wall	Header	0.05 in	1.27 mm	Square	Solder	Gold	Board to Cable/Wire	Nylon 9T Polyamide (PA9T)	UL94 V-0			26	All	-40 °C	105 ░C	0.05 in	1.27 mm	Push-Pull	Keying Slot	Black	Male Pin	Surface Mount	2	5.4 mm	0.213 in	Brass	Flash	Gold
CnC Tech, LLC 3220-26-0200-00	50 VAC	Flash	Shrouded - 4 Wall	Header	0.05 in	1.27 mm	Square	Solder	Gold	Board to Cable/Wire	Nylon 9T Polyamide (PA9T)	UL94 V-0	0.083 in	2.11 mm	26	All	-40 °C	105 ░C	0.05 in	1.27 mm	Push-Pull	Keying Slot	Black	Male Pin	Through Hole Right Angle	2		0.201 "	Brass			5.1 mm
CnC Tech, LLC 3220-26-0300-00-TR	50 VAC	Flash	Shrouded - 4 Wall	Header	0.05 in	1.27 mm	Square	Solder	Gold	Board to Cable/Wire	Nylon 9T Polyamide (PA9T)	UL94 V-0			26	All	-40 °C	105 ░C	0.05 in	1.27 mm	Push-Pull	Keying Slot Pick and Place	Black	Male Pin	Surface Mount	2	5.4 mm	0.213 in	Brass	Flash	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.27
		10	$ 1.10
		80	$ 0.98
		440	$ 0.82

Description

General part information

3220-26 Series

Connector Header Through Hole, Right Angle 26 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Soldering Guide 3X10,3X20,3221 Series

IDC Header Mating Guide

Datasheet

IDC, Flat Ribbon Cable Mating Chart

Datasheet
