3220-26-0300-00-TR
ActiveCnC Tech, LLC

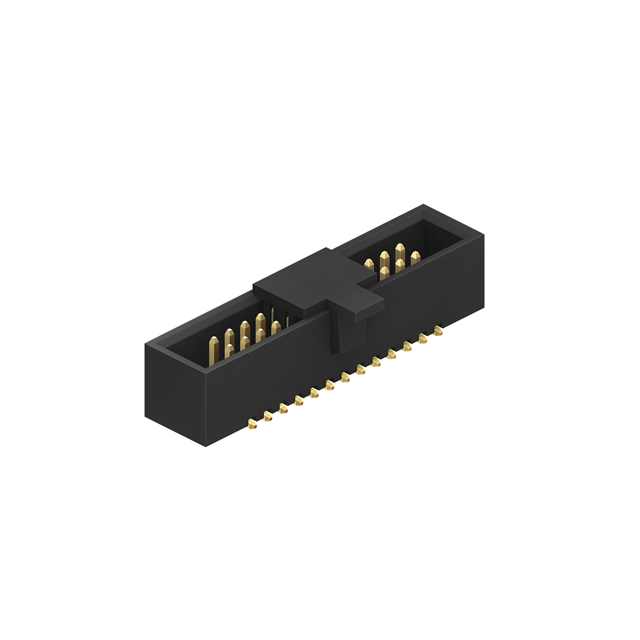

CONN HEADER SMD 26POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
3220-26-0300-00-TR
ActiveCnC Tech, LLC
CONN HEADER SMD 26POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3220-26-0300-00-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.4 mm |
| Insulation Height [z] | 0.213 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
3220-26 Series
| Part | Voltage Rating | Contact Finish Thickness - Mating | Shrouding | Connector Type | Pitch - Mating | Pitch - Mating | Contact Shape | Termination | Contact Finish - Mating | Style | Insulation Material | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Number of Positions | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Features | Insulation Color | Contact Type | Mounting Type | Number of Rows | Insulation Height | Insulation Height [z] | Contact Material | Contact Finish Thickness - Post | Contact Finish - Post | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | 50 VAC | Flash | Shrouded - 4 Wall | Header | 0.05 in | 1.27 mm | Square | Solder | Gold | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 0.083 in | 2.11 mm | 26 | All | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Push-Pull | Keying Slot | Black | Male Pin | Through Hole | 2 | 5.4 mm | 0.213 in | Brass | |||
CnC Tech, LLC | 50 VAC | Flash | Shrouded - 4 Wall | Header | 0.05 in | 1.27 mm | Square | Solder | Gold | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 26 | All | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Push-Pull | Keying Slot | Black | Male Pin | Surface Mount | 2 | 5.4 mm | 0.213 in | Brass | Flash | Gold | |||
CnC Tech, LLC | 50 VAC | Flash | Shrouded - 4 Wall | Header | 0.05 in | 1.27 mm | Square | Solder | Gold | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 0.083 in | 2.11 mm | 26 | All | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Push-Pull | Keying Slot | Black | Male Pin | Through Hole Right Angle | 2 | 0.201 " | Brass | 5.1 mm | |||
CnC Tech, LLC | 50 VAC | Flash | Shrouded - 4 Wall | Header | 0.05 in | 1.27 mm | Square | Solder | Gold | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 26 | All | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Push-Pull | Keying Slot Pick and Place | Black | Male Pin | Surface Mount | 2 | 5.4 mm | 0.213 in | Brass | Flash | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| 10 | $ 1.59 | |||
| 100 | $ 1.42 | |||
| Digi-Reel® | 1 | $ 1.83 | ||
| 10 | $ 1.59 | |||
| 100 | $ 1.42 | |||
| Tape & Reel (TR) | 700 | $ 1.25 | ||
| 1400 | $ 1.08 | |||
| 2100 | $ 1.04 | |||
| 3500 | $ 1.00 | |||
| 4900 | $ 0.95 | |||
Description
General part information
3220-26 Series
Connector Header Surface Mount 26 position 0.050" (1.27mm)
Documents
Technical documentation and resources
