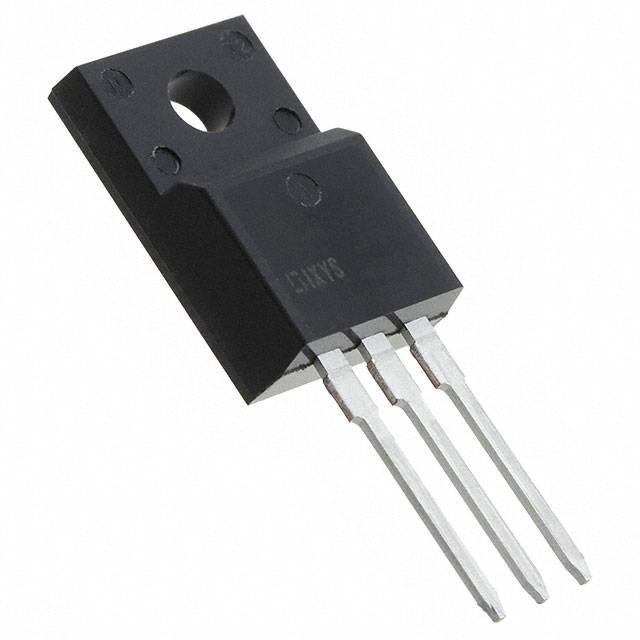

IXYP20N65C3D1M

Active

IXYS

IGBT 650V 18A 50W TO220

Search across all available documentation for this part.

Active

IXYS

IGBT 650V 18A 50W TO220

Technical Specifications

Parameters and characteristics for this part

Specification	IXYP20N65C3D1M

Current - Collector (Ic) (Max)	18 A
Current - Collector Pulsed (Icm)	105 A
Gate Charge	30 nC
IGBT Type	PT
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-3
Power - Max [Max]	50 W
Reverse Recovery Time (trr)	30 ns
Supplier Device Package	TO-220-3
Switching Energy [custom]	350 µJ
Switching Energy [custom]	430 µJ
Td (on/off) @ 25°C	19 ns, 80 ns
Test Condition	20 A, 400 V, 20 Ohm, 15 V
Vce(on) (Max) @ Vge, Ic	2.5 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Package / Case	Gate Charge	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max)	Switching Energy [custom]	Switching Energy [custom]	Td (on/off) @ 25°C	Vce(on) (Max) @ Vge, Ic	IGBT Type	Current - Collector Pulsed (Icm)	Reverse Recovery Time (trr)	Power - Max [Max]	Test Condition	Voltage - Collector Emitter Breakdown (Max) [Max]	Switching Energy	Current - Collector (Ic) (Max) [Max]
IXYS IXYP20N65C3D1M	TO-220-3	30 nC	650 V	TO-220-3	Through Hole	-55 °C	175 ░C	18 A	350 µJ	430 µJ	19 ns 80 ns	2.5 V	PT	105 A	30 ns	50 W	15 V 20 A 20 Ohm 400 V
IXYS IXYP20N65C3D1	TO-220-3	30 nC	650 V	TO-220-3	Through Hole	-55 °C	175 ░C	50 A	350 µJ	430 µJ	19 ns 80 ns	2.5 V	PT	105 A	135 ns	200 W	15 V 20 A 20 Ohm 400 V
IXYS IXYP20N120C3	TO-220-3	53 nC		TO-220-3	Through Hole	-55 °C	175 ░C				20 ns 90 ns	3.4 V		96 A		278 W	10 Ohm 15 V 20 A 600 V	1200 V	1.3 mJ 500 µJ	40 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 2.35

General part information

IGBT PT 650 V 18 A 50 W Through Hole TO-220-3
