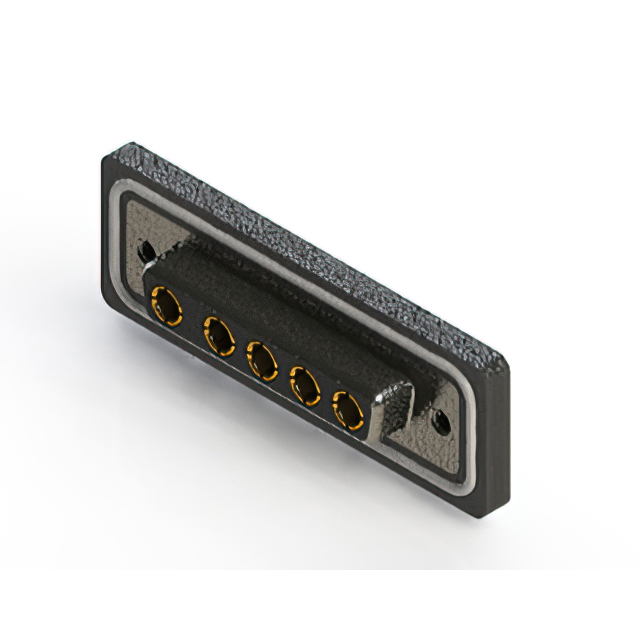

630W5W5-140-1NA

Active

EDAC Inc.

CONN D-SUB RCPT 5POS R/A SLDR

630W5W5-140-1NA

Active

EDAC Inc.

CONN D-SUB RCPT 5POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

630W5W Series

5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630W5W5-140-1NA

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	10 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Shielded
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	5
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	5W5
Position Types	Power
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125 V

630W5W Series

...

Part	Termination	Current Rating Options	Features	Connector Type	Number of Positions (Normal)	Number of Positions (Total)	Number of Positions (Power)	Connector Style	Flange Feature	Shell Size	Connector Layout	Part Code	Material Flammability Rating	Contact Type	Mounting Type	Contact Finish Thickness	Ingress Protection Description	Ingress Protection IP Rating	Number of Rows	Shell Material	Finish	Contact Finish	Dielectric Material	Voltage Rating	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Color	Current Rating	Number of Positions	Position Types	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 630W5W1-340-3NA	Solder	30A 5A	Shielded	Female Sockets Receptacle	4	5	1	Combo D-Sub	Housing Shell (M3)	1	DE E	5W1	UL94 V-0	Power Signal	Panel Mount Right Angle Through Hole	15 µin	Dust Tight Waterproof	IP67	2	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black
EDAC Inc. 630W5W5-140-2N4	Solder		Mounting Brackets Shielded	Female Sockets Receptacle				Combo D-Sub	Housing Shell (4-40)	3	B DB	5W5	UL94 V-0	Power	Panel Mount Right Angle Through Hole	5 µin	Dust Tight Waterproof	IP67	1	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black	20 A	5	Power
EDAC Inc. 630W5W5-140-1NA	Solder		Shielded	Female Sockets Receptacle				Combo D-Sub	Housing Shell (M3)	3	B DB	5W5	UL94 V-0	Power	Panel Mount Right Angle Through Hole	5 µin	Dust Tight Waterproof	IP67	1	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black	10 A	5	Power
EDAC Inc. 630W5W1-140-3NB	Solder	30A 5A	Board Lock Mounting Brackets Shielded	Female Sockets Receptacle	4	5	1	Combo D-Sub	Housing Shell (M3)	1	DE E	5W1	UL94 V-0	Power Signal	Panel Mount Right Angle Through Hole	5 µin	Dust Tight Waterproof	IP67	2	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black
EDAC Inc. 630W5W1-240-3N4	Solder	30A 5A	Mounting Brackets Shielded	Female Sockets Receptacle	4	5	1	Combo D-Sub	Housing Shell (4-40)	1	DE E	5W1	UL94 V-0	Power Signal	Panel Mount Right Angle Through Hole	0	Dust Tight Waterproof	IP67	2	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black				Flash	Flash
EDAC Inc. 630W5W1-140-3NC	Solder	30A 5A	Mounting Brackets Shielded	Female Sockets Receptacle	4	5	1	Combo D-Sub	Housing Shell (M3)	1	DE E	5W1	UL94 V-0	Power Signal	Right Angle Through Hole	5 µin	Dust Tight Waterproof	IP67	2	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black
EDAC Inc. 630W5W5-340-2NB	Solder		Board Lock Mounting Brackets Shielded	Female Sockets Receptacle				Combo D-Sub	Housing Shell (M3)	3	B DB	5W5	UL94 V-0	Power	Panel Mount Right Angle Through Hole	15 µin	Dust Tight Waterproof	IP67	1	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black	20 A	5	Power
EDAC Inc. 630W5W5-340-4N2	Solder		Shielded	Female Sockets Receptacle				Combo D-Sub	Housing Shell (4-40)	3	B DB	5W5	UL94 V-0	Power	Panel Mount Right Angle Through Hole	15 µin	Dust Tight Waterproof	IP67	1	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black	40 A	5	Power
EDAC Inc. 630W5W1-340-3NC	Solder	30A 5A	Mounting Brackets Shielded	Female Sockets Receptacle	4	5	1	Combo D-Sub	Housing Shell (M3)	1	DE E	5W1	UL94 V-0	Power Signal	Right Angle Through Hole	15 µin	Dust Tight Waterproof	IP67	2	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black
EDAC Inc. 630W5W1-140-4NB	Solder	40A 5A	Board Lock Mounting Brackets Shielded	Female Sockets Receptacle	4	5	1	Combo D-Sub	Housing Shell (M3)	1	DE E	5W1	UL94 V-0	Power Signal	Panel Mount Right Angle Through Hole	5 µin	Dust Tight Waterproof	IP67	2	Steel	Nickel Plated	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	125 °C	-55 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

630W5W5-140-1NA | Datasheet
