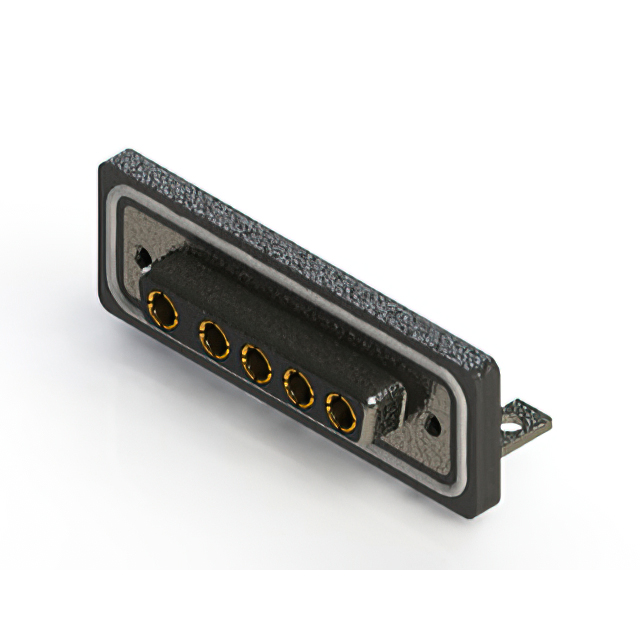

630W5W5-140-2N4

Active

EDAC Inc.

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W5W5-140-2N4

Active

EDAC Inc.

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W5W5-140-2N4

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

630W5W Series

...

Part	Flange Feature	Current Rating (Amps)	Connector Type	Dielectric Material	Connector Style	Contact Type	Shell Size, Connector Layout	Material Flammability Rating	Ingress Protection	Shell Material, Finish	Voltage Rating	Termination	Features	Color	Contact Finish	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions [custom]	Shell Size, Connector Layout	Contact Finish Thickness
EDAC Inc. 630W5W1-340-3NA	Housing/Shell (M3)	5 A 30 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Signal and Power	1 (DE E) - 5W1	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Shielded	Black	Gold	2	Panel Mount Right Angle Through Hole	15 µin	0.38 µm	5	-55 °C	125 °C	Copper Alloy
EDAC Inc. 630W5W5-140-2N4	Housing/Shell (4-40)	20 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Power	5W5	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Mounting Brackets Shielded	Black	Gold	1	Panel Mount Right Angle Through Hole	5 µin	0.127 µm		-55 °C	125 °C	Copper Alloy	5	3
EDAC Inc. 630W5W5-140-1NA	Housing/Shell (M3)	10 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Power	5W5	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Shielded	Black	Gold	1	Panel Mount Right Angle Through Hole	5 µin	0.127 µm		-55 °C	125 °C	Copper Alloy	5	3
EDAC Inc. 630W5W1-140-3NB	Housing/Shell (M3)	5 A 30 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Signal and Power	1 (DE E) - 5W1	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Board Lock Mounting Brackets Shielded	Black	Gold	2	Panel Mount Right Angle Through Hole	5 µin	0.127 µm	5	-55 °C	125 °C	Copper Alloy
EDAC Inc. 630W5W1-240-3N4	Housing/Shell (4-40)	5 A 30 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Signal and Power	1 (DE E) - 5W1	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Mounting Brackets Shielded	Black	Gold	2	Panel Mount Right Angle Through Hole			5	-55 °C	125 °C	Copper Alloy			Flash
EDAC Inc. 630W5W5-340-2NB	Housing/Shell (M3)	20 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Power	5W5	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Board Lock Mounting Brackets Shielded	Black	Gold	1	Panel Mount Right Angle Through Hole	15 µin	0.38 µm		-55 °C	125 °C	Copper Alloy	5	3
EDAC Inc. 630W5W5-340-4N2	Housing/Shell (4-40)	40 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Power	5W5	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Shielded	Black	Gold	1	Panel Mount Right Angle Through Hole	15 µin	0.38 µm		-55 °C	125 °C	Copper Alloy	5	3
EDAC Inc. 630W5W1-340-3NC	Housing/Shell (M3)	5 A 30 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Signal and Power	1 (DE E) - 5W1	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Mounting Brackets Shielded	Black	Gold	2	Through Hole Right Angle	15 µin	0.38 µm	5	-55 °C	125 °C	Copper Alloy
EDAC Inc. 630W5W1-140-4NB	Housing/Shell (M3)	5 A 40 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Signal and Power	1 (DE E) - 5W1	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Board Lock Mounting Brackets Shielded	Black	Gold	2	Panel Mount Right Angle Through Hole	5 µin	0.127 µm	5	-55 °C	125 °C	Copper Alloy
EDAC Inc. 630W5W1-240-4N3	Housing/Shell (4-40)	5 A 40 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Signal and Power	1 (DE E) - 5W1	UL94 V-0	IP67 - Dust Tight Waterproof	Nickel Plated Steel	125 VDC	Solder	Board Lock Mounting Brackets Shielded	Black	Gold	2	Panel Mount Right Angle Through Hole			5	-55 °C	125 °C	Copper Alloy			Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 20.97

Description

General part information

630W5W Series

5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
