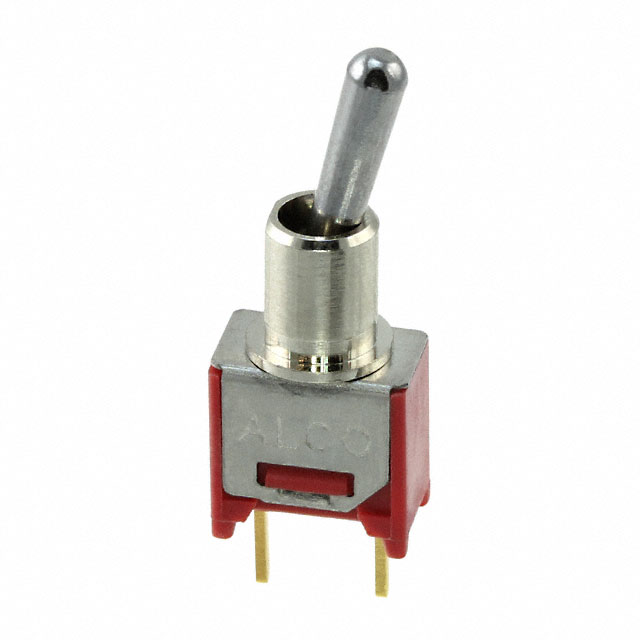

TMS6T5B2M2RE
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPST 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMS6T5B2M2RE
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPST 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS6T5B2M2RE |
|---|---|
| Actuator Length [x] | 7.62 mm |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPST |
| Current Rating (Amps) | 0.4 VA |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.46 | |
| 10 | $ 6.71 | |||
| 25 | $ 6.38 | |||
| 50 | $ 6.11 | |||
| 100 | $ 5.90 | |||
| 300 | $ 5.60 | |||
| 500 | $ 5.13 | |||
| 1000 | $ 4.89 | |||
Description
General part information
TMS6T Series
Toggle Switch SPST Through Hole
