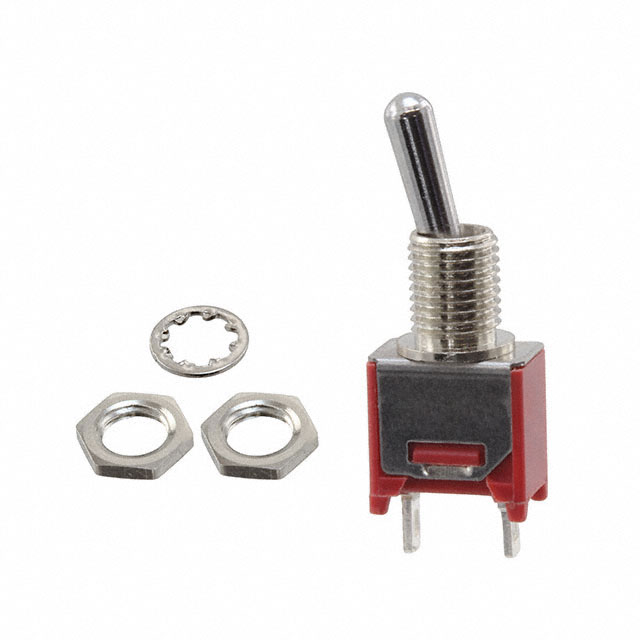

TMS6T3B1M1QE
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPST 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMS6T3B1M1QE
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPST 3A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS6T3B1M1QE |
|---|---|
| Actuator Type | Standard Round |
| Bushing Thread | 10-48 |
| Circuit | SPST |
| Current Rating (Amps) | 3 A |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 4.95 mm |
| Switch Function | On-Off |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.24 | |
| 10 | $ 6.52 | |||
| 25 | $ 6.19 | |||
| 50 | $ 5.93 | |||
| 100 | $ 5.73 | |||
| 300 | $ 5.44 | |||
| 500 | $ 4.98 | |||
| 1000 | $ 4.75 | |||
Description
General part information
TMS6T Series
Toggle Switch SPST Panel Mount
