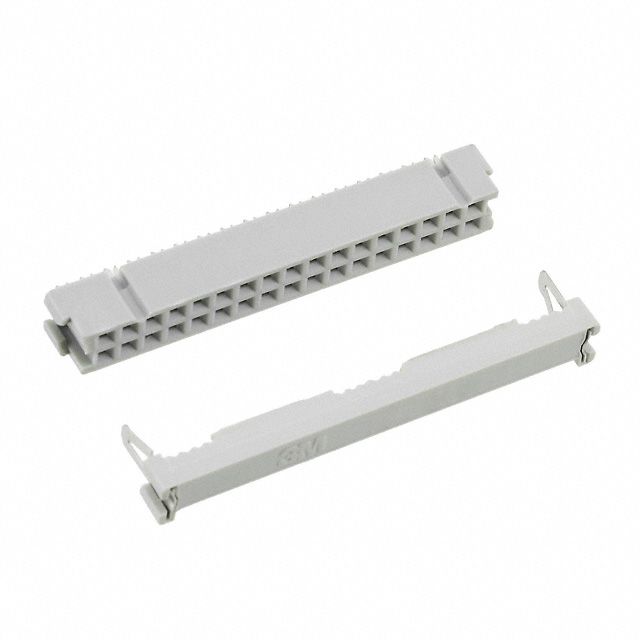

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 34 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +1

3414-7000

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 34 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3414-7000

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	34
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

3414 Series

Part	Contact Type	Contact Finish	Cable Termination	Features	Color	Number of Positions	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3414-7634	Female Socket	Gold	IDC	Closed End Polarizing Key Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-7000	Female Socket	Gold	IDC	Closed End	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-7034	Female Socket	Gold	IDC	Closed End Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-6634	Female Socket	Gold	IDC	Feed Through Polarizing Key Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-6000	Female Socket	Gold	IDC	Feed Through	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-6600	Female Socket	Gold	IDC	Feed Through Polarizing Key	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	26 AWG	28 AWG	Solid Stranded
3M (TC) 3414-6034	Female Socket	Gold	IDC	Feed Through Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
