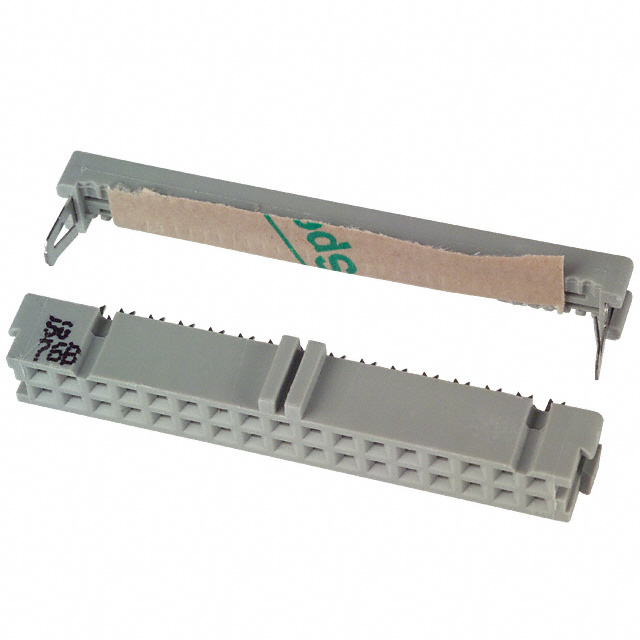

3414-6600

Active

3M (TC)

CONN RCPT 34P IDC 26-28AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 34P IDC 26-28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Contact Finish	Cable Termination	Features	Color	Number of Positions	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3414-7634	Female Socket	Gold	IDC	Closed End Polarizing Key Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-7000	Female Socket	Gold	IDC	Closed End	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-7034	Female Socket	Gold	IDC	Closed End Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-6634	Female Socket	Gold	IDC	Feed Through Polarizing Key Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-6000	Female Socket	Gold	IDC	Feed Through	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
3M (TC) 3414-6600	Female Socket	Gold	IDC	Feed Through Polarizing Key	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	26 AWG	28 AWG	Solid Stranded
3M (TC) 3414-6034	Female Socket	Gold	IDC	Feed Through Strain Relief	Gray	34	Ribbon Cable	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG, Stranded or Solid
