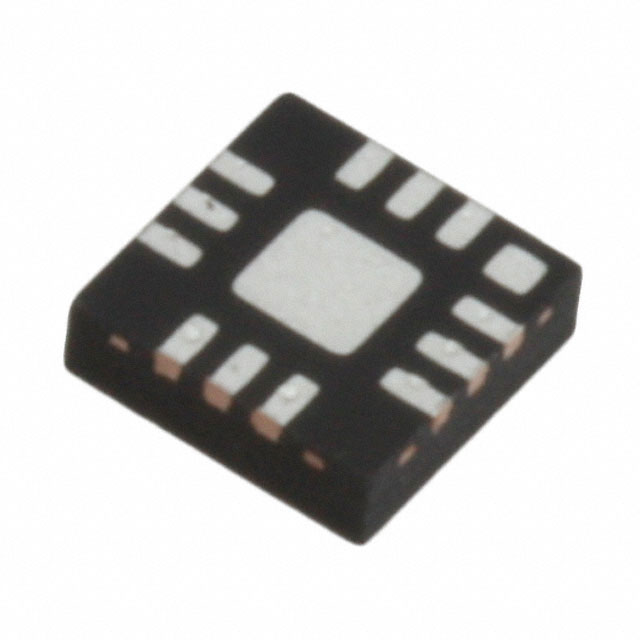

MASW-007587-TR3000
ActiveMACOM Technology Solutions
IC RF SWITCH DPDT 4GHZ 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MASW-007587-TR3000
ActiveMACOM Technology Solutions
IC RF SWITCH DPDT 4GHZ 12QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MASW-007587-TR3000 |
|---|---|
| Circuit | DPDT |
| Impedance | 50 Ohms |
| Insertion Loss | 1.2 dB |
| Isolation | 32 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 41 dBm |
| Package / Case | 12-VFQFN Exposed Pad |
| RF Type | WiMax, WLAN |
| Supplier Device Package | 12-PQFN (3x3) |
| Test Frequency | 4 GHz |
| Topology | Reflective |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.90 | |
| 10 | $ 8.95 | |||
| 25 | $ 8.53 | |||
| 100 | $ 7.41 | |||
| 250 | $ 7.07 | |||
| 500 | $ 6.45 | |||
| 1000 | $ 5.62 | |||
| Digi-Reel® | 1 | $ 9.90 | ||
| 10 | $ 8.95 | |||
| 25 | $ 8.53 | |||
| 100 | $ 7.41 | |||
| 250 | $ 7.07 | |||
| 500 | $ 6.45 | |||
| 1000 | $ 5.62 | |||
| Tape & Reel (TR) | 3000 | $ 5.41 | ||
Description
General part information
MASW-007587 Series
RF Switch IC WiMax, WLAN DPDT 4 GHz 50Ohm 12-PQFN (3x3)
