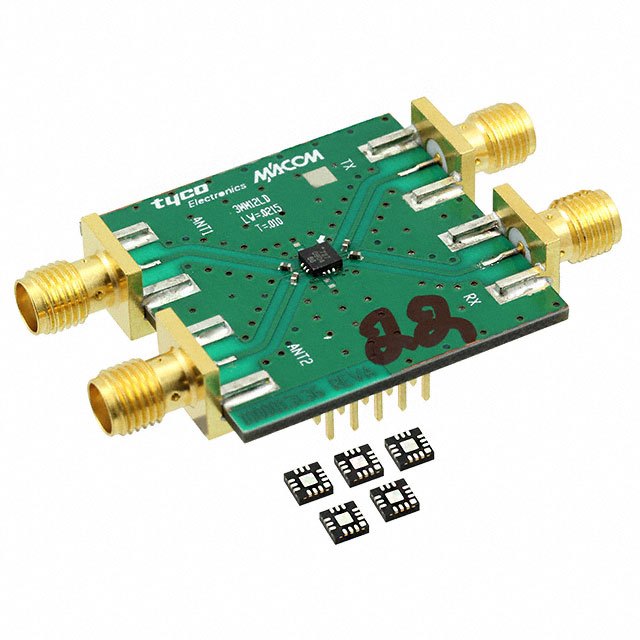

MASW-007587-000SMB

Active

MACOM Technology Solutions

EVAL BOARD FOR MASW-007587-TR300

Search across all available documentation for this part.

Active

MACOM Technology Solutions

EVAL BOARD FOR MASW-007587-TR300

Technical Specifications

Parameters and characteristics for this part

Specification	MASW-007587-000SMB

For Use With/Related Products	MASW-007587
Frequency [Max]	4 GHz
Frequency [Min]	0 Hz
Supplied Contents	Board(s)

Part	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Supplied Contents	Impedance	Insertion Loss	Test Frequency	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	P1dB	Isolation	RF Type	Package / Case	Topology	Supplier Device Package
MACOM Technology Solutions MASW-007587-000SMB	MASW-007587	4 GHz	0 Hz	Board(s)
MACOM Technology Solutions MASW-007587-TR3000					50 Ohms	1.2 dB	4 GHz	DPDT	85 °C	-40 °C	41 dBm	32 dB	WiMax WLAN	12-VFQFN Exposed Pad	Reflective	12-PQFN (3x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 375.00

General part information

MASW-007587 - Switch, DPDT 0Hz ~ 4GHz Evaluation Board
