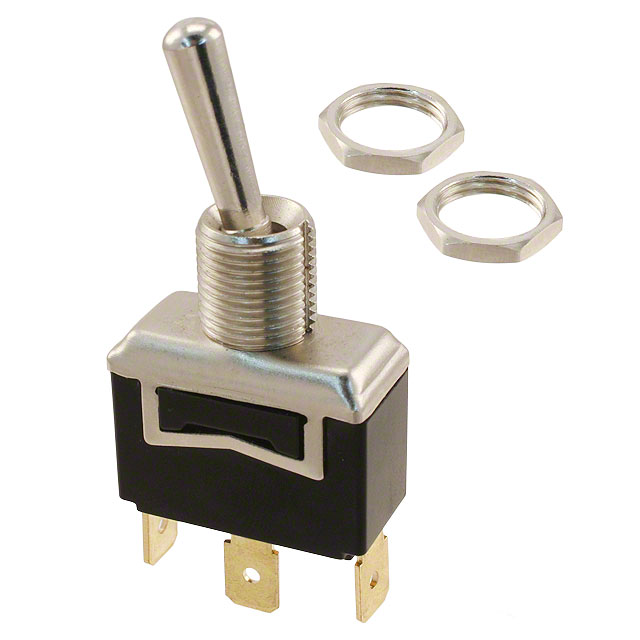

ST14DD00

Active

E-Switch

SWITCH TOGGLE SPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ST14DD00

Actuator Length [x]	19.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Operating Temperature [Max]	Actuator Material	Actuator Type	Current Rating (Amps)	Termination Style	Circuit	Bushing Thread	Bushing Thread	Switch Function	Electrical Life	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Illumination
E-Switch ST14DD10	85 °C	Brass Nickel Plated	Standard Round	20 A	Quick Connect - 0.250" (6.3mm)	SPDT	M12	1 x 1	Mom-Off-Mom	6000 Cycles	13 mm	12 mm	125 V	Non-Illuminated
E-Switch ST14DD00	85 °C	Brass Nickel Plated	Standard Round	20 A	Quick Connect - 0.250" (6.3mm)	SPDT	M12	1 x 1	Mom-Off-Mom	6000 Cycles	19.5 mm	12 mm	125 V	Non-Illuminated
E-Switch ST14CD00	85 °C	Brass Nickel Plated	Standard Round	20 A	Quick Connect - 0.250" (6.3mm)	SPDT	M12	1 x 1	On-Off-Mom	6000 Cycles	19.5 mm	12 mm	125 V	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount

Technical documentation and resources

No documents available
