T9GV5L24-9
ActiveTE Connectivity Potter & Brumfield Relays

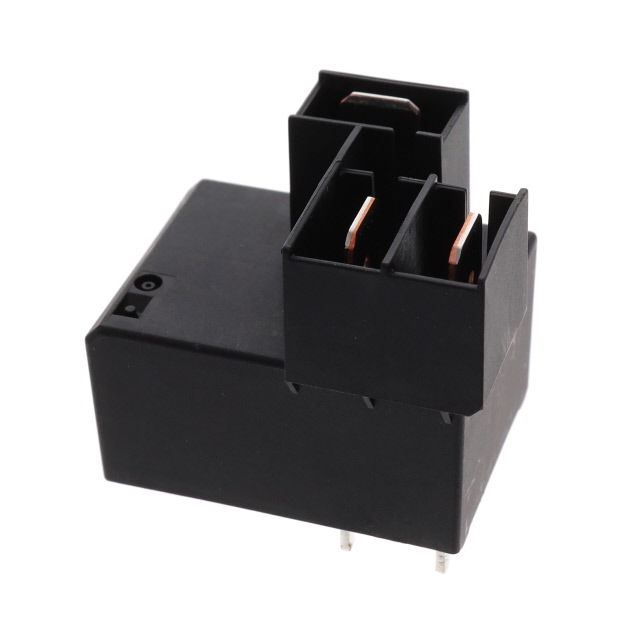

RELAY GEN PURPOSE SPDT 20A 9V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T9GV5L24-9
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 20A 9V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T9GV5L24-9 |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 100 mA |
| Coil Insulation | Class B |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 9 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 20 A |
| Load - Max Switching [Max] | 9600 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 22 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 480 VAC |
| Termination Style | PC Pin, Quick Connect |
| Termination Style | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.61 | |
| 10 | $ 3.39 | |||
| 30 | $ 3.01 | |||
| 50 | $ 2.86 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.65 | |||
Description
General part information
T9GV5 Series
General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
