T9GV5L24-110

Active

TE Connectivity Potter & Brumfield Relays

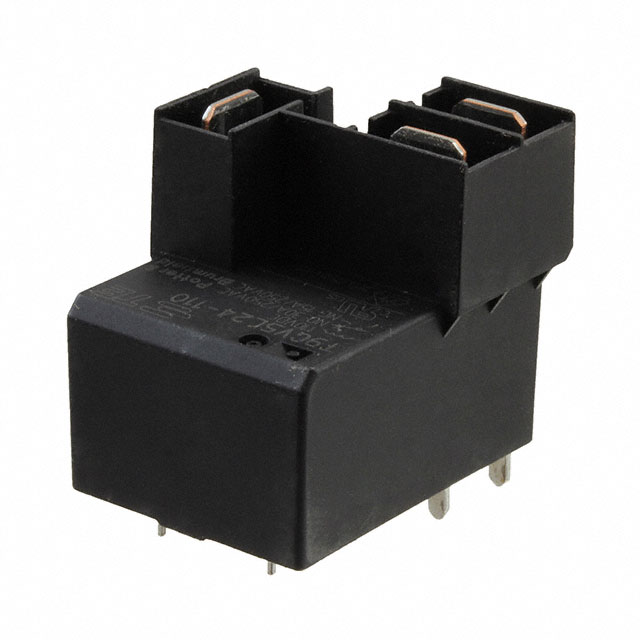

RELAY GEN PURPOSE SPDT 20A 110V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T9GV5L24-110

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 20A 110V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9GV5L24-110

Approval Agency	CQC, VDE, cURus
Coil Current	8.2 mA
Coil Insulation	Class B
Coil Resistance	13.4 kOhms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching [Max]	9600 VA
Mounting Type	Through Hole
Must Operate Voltage	82.5 VDC
Must Release Voltage	11 VDC
Operate Time	15 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	22 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	480 VAC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

T9GV5 Series

Part	Contact Rating (Current)	Coil Voltage	Coil Type	Load - Max Switching [Max]	Contact Material	Mounting Type	Operate Time	Termination Style	Termination Style	Seal Rating	Relay Type	Must Release Voltage	Must Operate Voltage	Contact Form	Release Time	Coil Current	Approval Agency	Switching Voltage	Coil Insulation	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Potter & Brumfield Relays T9GV5L24-110	20 A	110 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin Quick Connect	0.25 in	Sealed - Flux Protection	General Purpose	11 VDC	82.5 VDC	SPDT (1 Form C)	22 ms	8.2 mA	CQC cURus VDE	480 VAC	Class B	13.4 kOhms	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GV5L24-15	20 A	15 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin Quick Connect	0.25 in	Sealed - Flux Protection	General Purpose	1.5 VDC	11.25 VDC	SPDT (1 Form C)	22 ms	60 mA	CQC cURus VDE	480 VAC	Class B	249 Ohms	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GV5L14-9	20 A	9 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin		Sealed - Flux Protection	General Purpose	0.9 VDC	6.75 VDC	SPDT (1 Form C)	22 ms	100 mA	CQC cURus VDE	480 VAC	Class B	90 Ohms	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GV5L24-18	20 A	18 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin Quick Connect	0.25 in	Sealed - Flux Protection	General Purpose	1.8 VDC	13.5 VDC	SPDT (1 Form C)	22 ms	50 mA	CQC cURus VDE	480 VAC	Class B	360 Ohms	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GV5L24-9	20 A	9 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin Quick Connect	0.25 in	Sealed - Flux Protection	General Purpose	0.9 VDC	6.75 VDC	SPDT (1 Form C)	22 ms	100 mA	CQC cURus VDE	480 VAC	Class B	90 Ohms	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GV5L24-5	20 A	5 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin Quick Connect	0.25 in	Sealed - Flux Protection	General Purpose	0.5 VDC	3.75 VDC	SPDT (1 Form C)	22 ms	180 mA	CQC cURus VDE	480 VAC	Class B	28 Ohms	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GV5L14-15	20 A	15 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin		Sealed - Flux Protection	General Purpose	1.5 VDC	11.25 VDC	SPDT (1 Form C)	22 ms	60 mA	CQC cURus VDE	480 VAC	Class B	249 Ohms	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GV5L14-12	20 A	12 VDC	Non Latching	9600 VA	Silver Tin Oxide (AgSnO)	Through Hole	15 ms	PC Pin		Sealed - Flux Protection	General Purpose	1.2 VDC	9 VDC	SPDT (1 Form C)	22 ms	75 mA	CQC cURus VDE	480 VAC	Class B	160 Ohms	-40 °C	105 ░C
