9007-24-01

Active

Coto Technology

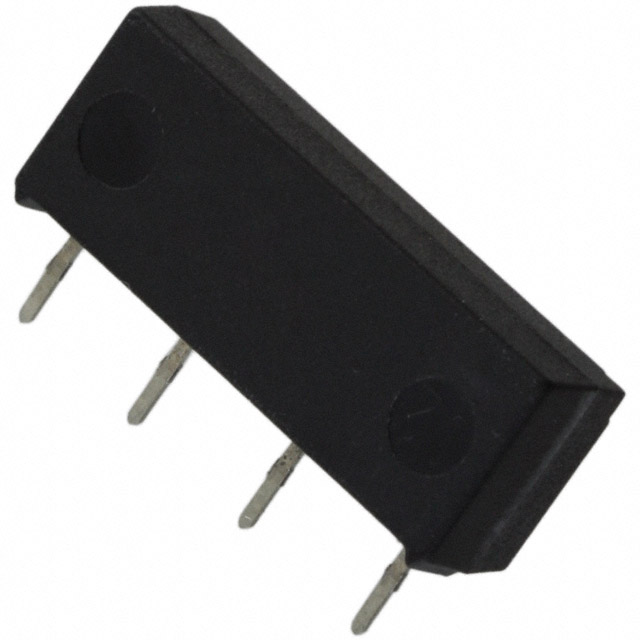

RELAY REED SPST 500MA 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9007-24-01

Active

Coto Technology

RELAY REED SPST 500MA 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9007-24-01	9007 Series

Coil Current	12 mA	5 - 12 mA
Coil Resistance	2 kOhms	1 - 500 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	5 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Rating (Current)	0.5 A	0.5 A
Features	Diode	EMI Shielded, Diode
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	3.75 - 18 VDC
Must Release Voltage	2 VDC	0.4 - 2 VDC
Operate Time	500 µs	500 µs
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.2 ms	0.2 ms
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

9007 Series

REED RELAY, SPST-NO, 12 VDC, 9007 SERIES, THROUGH HOLE, 1 KOHM, 500 MA

Part	Release Time	Contact Form	Must Release Voltage	Must Operate Voltage	Termination Style	Coil Resistance	Switching Voltage	Coil Type	Contact Rating (Current)	Operate Time	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Voltage	Features
Coto Technology 9007-12-00	0.2 ms	SPST-NO (1 Form A)	1 VDC	9 VDC	PC Pin	1 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	12 VDC
Coto Technology 9007-05-11	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC	Diode, EMI Shielded
Coto Technology 9007-05-10	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC	EMI Shielded
Coto Technology 9007-12-40	0.2 ms	SPST-NO (1 Form A)	1 VDC	9 VDC	PC Pin	2 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	6 mA	12 VDC	EMI Shielded
Coto Technology 9007-05-00	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC
Coto Technology 9007-05-40	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	1 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	5 mA	5 VDC	EMI Shielded
Coto Technology 9007-12-01	0.2 ms	SPST-NO (1 Form A)	1 VDC	9 VDC	PC Pin	1 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	12 VDC	Diode
Coto Technology 9007-05-01	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC	Diode
Coto Technology 9007-24-00	0.2 ms	SPST-NO (1 Form A)	2 VDC	18 VDC	PC Pin	2 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	24 VDC
Coto Technology 9007-24-01	0.2 ms	SPST-NO (1 Form A)	2 VDC	18 VDC	PC Pin	2 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	24 VDC	Diode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.55
		10	$ 2.39
		25	$ 2.12
		50	$ 2.02
		100	$ 1.91
		250	$ 1.70
		500	$ 1.59
		1000	$ 1.48
		5000	$ 1.43

Description

General part information

9007 Series

RELAY REED SPST 500MA 24V
