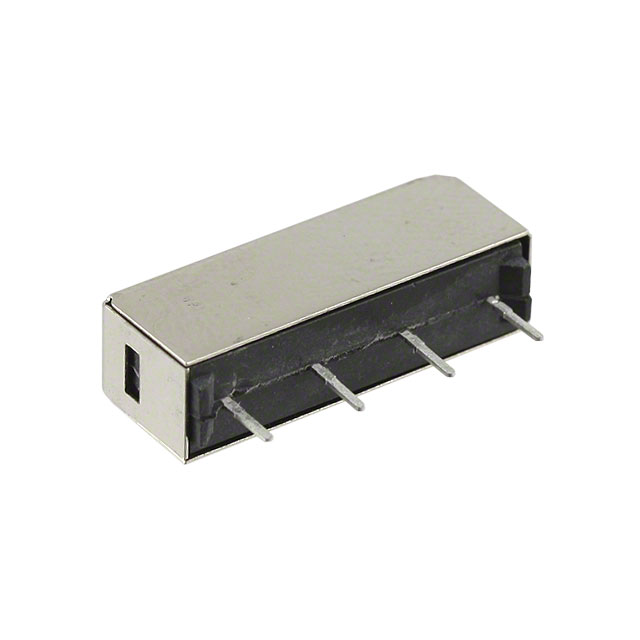

9007-05-40

Active

Coto Technology

RELAY REED SPST 500MA 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9007-05-40

Active

Coto Technology

RELAY REED SPST 500MA 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.88
		22	$ 3.64
		44	$ 3.07
		110	$ 2.91
		264	$ 2.59
		506	$ 2.42
		1012	$ 2.26

Description

General part information

9007 Series

RELAY REED SPST 500MA 5V

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9007-05-40	9007 Series

Coil Current	5 mA	5 - 12 mA
Coil Resistance	1 kOhms	1 - 500 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	5 VDC	5 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Rating (Current)	0.5 A	0.5 A
Features	EMI Shielded	EMI Shielded, Diode
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	3.75 VDC	3.75 - 18 VDC
Must Release Voltage	0.4 VDC	0.4 - 2 VDC
Operate Time	500 µs	500 µs
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.2 ms	0.2 ms
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

9007 Series

REED RELAY, SPST-NO, 12 VDC, 9007 SERIES, THROUGH HOLE, 1 KOHM, 500 MA

Part	Release Time	Contact Form	Must Release Voltage	Must Operate Voltage	Termination Style	Coil Resistance	Switching Voltage	Coil Type	Contact Rating (Current)	Operate Time	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Voltage	Features
Coto Technology 9007-12-00	0.2 ms	SPST-NO (1 Form A)	1 VDC	9 VDC	PC Pin	1 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	12 VDC
Coto Technology 9007-05-11	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC	Diode, EMI Shielded
Coto Technology 9007-05-10	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC	EMI Shielded
Coto Technology 9007-12-40	0.2 ms	SPST-NO (1 Form A)	1 VDC	9 VDC	PC Pin	2 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	6 mA	12 VDC	EMI Shielded
Coto Technology 9007-05-00	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC
Coto Technology 9007-05-40	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	1 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	5 mA	5 VDC	EMI Shielded
Coto Technology 9007-12-01	0.2 ms	SPST-NO (1 Form A)	1 VDC	9 VDC	PC Pin	1 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	12 VDC	Diode
Coto Technology 9007-05-01	0.2 ms	SPST-NO (1 Form A)	0.4 VDC	3.75 VDC	PC Pin	500 Ohms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	10 mA	5 VDC	Diode
Coto Technology 9007-24-00	0.2 ms	SPST-NO (1 Form A)	2 VDC	18 VDC	PC Pin	2 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	24 VDC
Coto Technology 9007-24-01	0.2 ms	SPST-NO (1 Form A)	2 VDC	18 VDC	PC Pin	2 kOhms	200 VDC, 200 VAC	Non Latching	0.5 A	500 µs	Through Hole	85 °C	-20 C	12 mA	24 VDC	Diode
