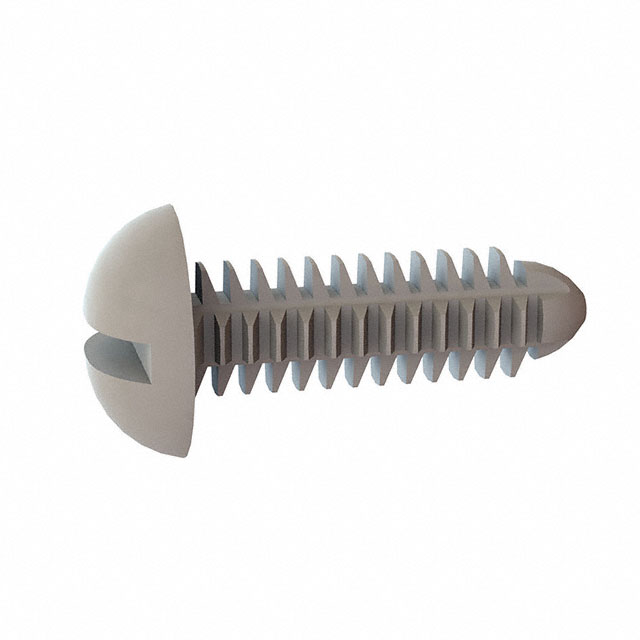

27SC2520R075

Active

Essentra Access Solutions

BARBED FASTENER, SLOTTED ROUND,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

27SC2520R075

Active

Essentra Access Solutions

BARBED FASTENER, SLOTTED ROUND,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	27SC2520R075

Color	Natural
Head Diameter [diameter]	11.43 mm
Head Diameter [diameter]	0.45 "
Head Height	2.29 mm
Head Height [z]	0.09 in
Hole Diameter	0.203 in
Hole Diameter	5.16 mm
Hole Diameter	14/69
Material	Nylon
Rivet Length	0.75 "
Rivet Length	19.05 mm
Rivet Length	0.75 "
Type	Barbed Fastener

27SC2520 Series

Part	Type	Hole Diameter	Hole Diameter	Hole Diameter	Rivet Length	Rivet Length	Rivet Length	Head Diameter [diameter]	Head Diameter	Head Diameter	Color	Head Height	Head Height	Material	Head Diameter [diameter]	Head Height [z]
Essentra Access Solutions 27SC2520K075	Barbed Fastener	0.203 in	5.16 mm	14/69	0.75 "	19.05 mm	0.75 "	0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520K037	Barbed Fastener	0.203 in	5.16 mm	14/69	0.375 in	0.375 in	9.53 mm	0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520H037	Barbed Fastener	0.203 in	5.16 mm	14/69	0.375 in	0.375 in	9.53 mm	0.37 in			Natural	0.175 in	4.45 mm	Nylon	9.4 mm
Essentra Access Solutions 27SC2520R050	Barbed Fastener	0.203 in	5.16 mm	14/69	0.5 in	12.7 mm	0.5 in	0.45 "			Natural		2.29 mm	Nylon	11.43 mm	0.09 in
Essentra Access Solutions 27SC2520P062	Barbed Fastener	0.203 in	5.16 mm	14/69	0.625 "	0.625 "	15.88 mm	0.475 in			Natural			Nylon	12.07 mm
Essentra Access Solutions 27SC2520R075	Barbed Fastener	0.203 in	5.16 mm	14/69	0.75 "	19.05 mm	0.75 "	0.45 "			Natural		2.29 mm	Nylon	11.43 mm	0.09 in
Essentra Access Solutions 27SC2520K100	Barbed Fastener	0.203 in	5.16 mm	14/69	1 in	25.4 mm		0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520K050	Barbed Fastener	0.203 in	5.16 mm	14/69	0.5 in	12.7 mm	0.5 in	0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520H050	Barbed Fastener	0.203 in	5.16 mm	14/69	0.5 in	12.7 mm	0.5 in	0.37 in			Natural	0.175 in	4.45 mm	Nylon	9.4 mm
Essentra Access Solutions 27SC2520P075	Barbed Fastener	0.203 in	5.16 mm	14/69	0.75 "	19.05 mm	0.75 "	0.475 in			Natural			Nylon	12.07 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.12

Description

General part information

27SC2520 Series

Barbed Fastener Grip Range Nylon
