27SC2520H037

Active

Essentra Access Solutions

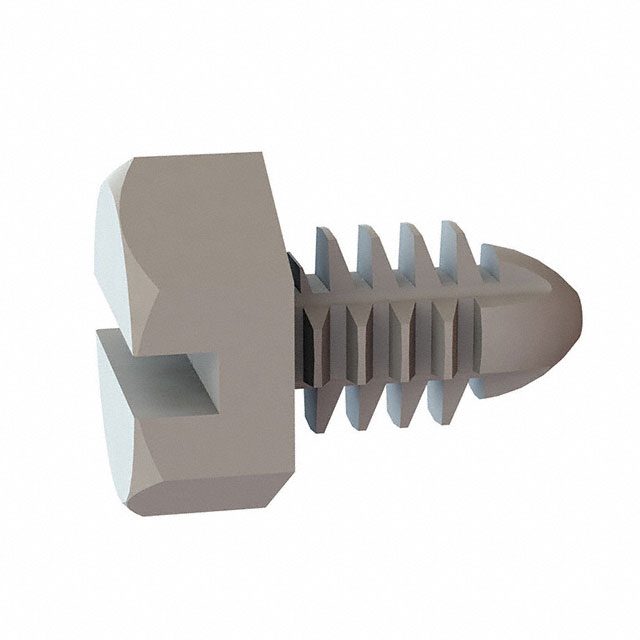

BARBED FASTENER, SLOTTED HEX, .3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

27SC2520H037

Active

Essentra Access Solutions

BARBED FASTENER, SLOTTED HEX, .3

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	27SC2520H037

Color	Natural
Head Diameter [diameter]	9.4 mm
Head Diameter [diameter]	0.37 in
Head Height	4.45 mm
Head Height	0.175 in
Hole Diameter	0.203 in
Hole Diameter	5.16 mm
Hole Diameter	14/69
Material	Nylon
Rivet Length	9.53 mm
Rivet Length	0.375 in
Rivet Length	0.375 in
Type	Barbed Fastener

27SC2520 Series

Part	Type	Hole Diameter	Hole Diameter	Hole Diameter	Rivet Length	Rivet Length	Rivet Length	Head Diameter [diameter]	Head Diameter	Head Diameter	Color	Head Height	Head Height	Material	Head Diameter [diameter]	Head Height [z]
Essentra Access Solutions 27SC2520K075	Barbed Fastener	0.203 in	5.16 mm	14/69	0.75 "	19.05 mm	0.75 "	0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520K037	Barbed Fastener	0.203 in	5.16 mm	14/69	0.375 in	0.375 in	9.53 mm	0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520H037	Barbed Fastener	0.203 in	5.16 mm	14/69	0.375 in	0.375 in	9.53 mm	0.37 in			Natural	0.175 in	4.45 mm	Nylon	9.4 mm
Essentra Access Solutions 27SC2520R050	Barbed Fastener	0.203 in	5.16 mm	14/69	0.5 in	12.7 mm	0.5 in	0.45 "			Natural		2.29 mm	Nylon	11.43 mm	0.09 in
Essentra Access Solutions 27SC2520P062	Barbed Fastener	0.203 in	5.16 mm	14/69	0.625 "	0.625 "	15.88 mm	0.475 in			Natural			Nylon	12.07 mm
Essentra Access Solutions 27SC2520R075	Barbed Fastener	0.203 in	5.16 mm	14/69	0.75 "	19.05 mm	0.75 "	0.45 "			Natural		2.29 mm	Nylon	11.43 mm	0.09 in
Essentra Access Solutions 27SC2520K100	Barbed Fastener	0.203 in	5.16 mm	14/69	1 in	25.4 mm		0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520K050	Barbed Fastener	0.203 in	5.16 mm	14/69	0.5 in	12.7 mm	0.5 in	0.375 in	9.53 mm	0.375 in	Natural	0.093 in	2.36 mm	Nylon
Essentra Access Solutions 27SC2520H050	Barbed Fastener	0.203 in	5.16 mm	14/69	0.5 in	12.7 mm	0.5 in	0.37 in			Natural	0.175 in	4.45 mm	Nylon	9.4 mm
Essentra Access Solutions 27SC2520P075	Barbed Fastener	0.203 in	5.16 mm	14/69	0.75 "	19.05 mm	0.75 "	0.475 in			Natural			Nylon	12.07 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.09

Description

General part information

27SC2520 Series

Barbed Fastener Grip Range Nylon
