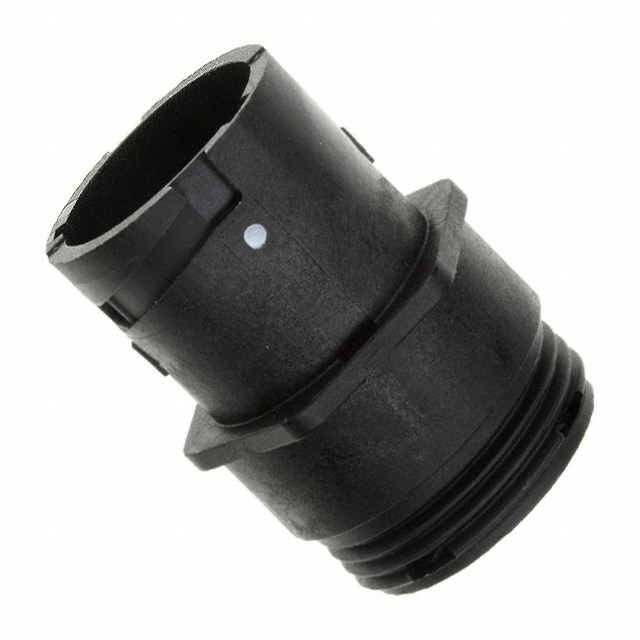

1445829-3
ActiveTE Connectivity Raychem Cable Protection
REC,11-5,FRE HNG,LG INS,STD KE
Deep-Dive with AI
Search across all available documentation for this part.
1445829-3
ActiveTE Connectivity Raychem Cable Protection
REC,11-5,FRE HNG,LG INS,STD KE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1445829-3 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Shell Size - Insert | 11-5 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 700 | $ 9.59 | |
Description
General part information
Mini Circular Plastic Connectors Series
5 Position Circular Power Connector, Housing, 250 VDC, 30 – 18 AWG, .0509 – .823 mm² Wire, Wire-to-Wire, Sealable, AMP Circular Plastic Connectors
