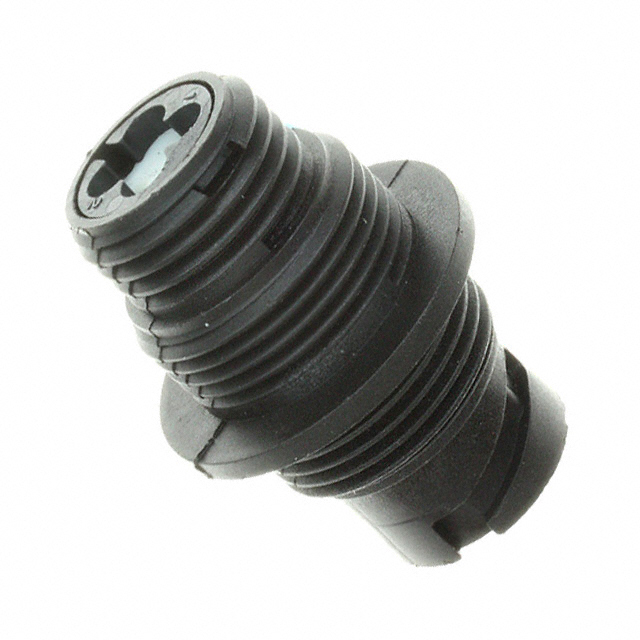

1445538-3

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSNG MALE 2POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1445538-3

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSNG MALE 2POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1445538-3

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front or Rear Side Nut
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	8-2
Shielding	Unshielded
Type	For Male Pins

Mini Circular Plastic Connectors Series

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Housing Color	Contact Shape	Material Flammability Rating	Contact Type	Type	Note	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Ingress Protection	Shielding	Insert Material	Orientation	Mounting Type	Shell Size - Insert
TE Connectivity Raychem Cable Protection 1445816-3	11	9	9	Black	Circular	UL94 V-0	Crimp	For Male Pins	Contacts Not Included Jam Nut Not Included	Bulkhead - Front or Rear Side Nut	105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded	Thermoplastic	A
TE Connectivity Raychem Cable Protection 1445389-3			4	Black	Circular	UL94 V-0	Crimp	For Male Pins	Contacts Not Included		105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded	Thermoplastic	A	Free Hanging (In-Line)	8-4
TE Connectivity Raychem Cable Protection 1445538-3			2	Black	Circular		Crimp	For Male Pins	Contacts Not Included Jam Nut Not Included	Bulkhead - Front or Rear Side Nut	105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded		Keyed		8-2
TE Connectivity Raychem Cable Protection 1445829-3				Black	Circular	UL94 V-0	Crimp	For Male Pins	Contacts Not Included		105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded	Thermoplastic	A	Free Hanging (In-Line)	11-5
TE Connectivity Raychem Cable Protection 1445538-1			2	Black	Circular	UL94 V-0	Crimp	For Male Pins	Contacts Not Included Jam Nut Not Included	Bulkhead - Front or Rear Side Nut	105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded	Thermoplastic	A		8-2
TE Connectivity Raychem Cable Protection 1445829-1				Black	Circular	UL94 V-0	Crimp	For Male Pins	Contacts Not Included		105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded	Thermoplastic	A	Free Hanging (In-Line)	11-5
TE Connectivity Raychem Cable Protection 1445821-1			8	Black	Circular	UL94 V-0	Crimp	For Male Pins	Contacts Not Included Jam Nut Not Included	Bulkhead - Front or Rear Side Nut	105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded	Thermoplastic	A		11-8
TE Connectivity Raychem Cable Protection 1445522-3			2	Black	Circular	UL94 V-0	Crimp	For Male Pins	Contacts Not Included		105 ░C	-55 °C	Bayonet Lock	Receptacle Housing	IP67 - Dust Tight Waterproof	Unshielded	Thermoplastic	A	Free Hanging (In-Line)	8-2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.57
		10	$ 10.35
		25	$ 10.08
		50	$ 9.70

Description

General part information

Mini Circular Plastic Connectors Series

2 Position Circular Connector Receptacle Housing Panel Mount
