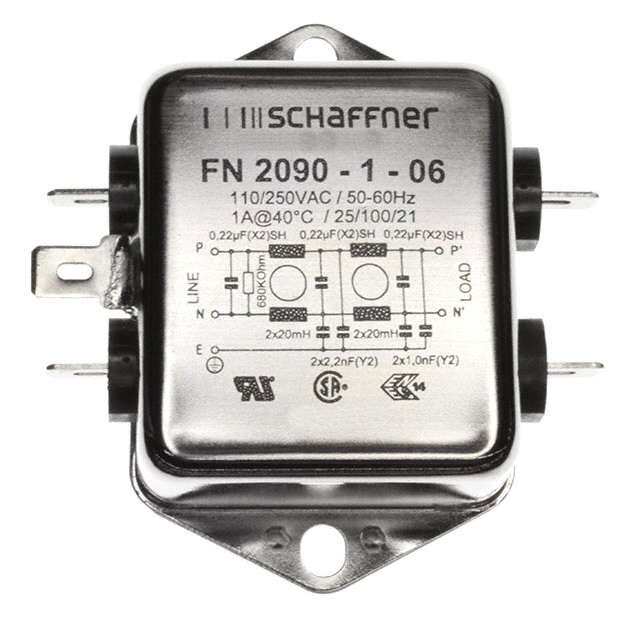

FN2090-1-06

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 110V/250VAC 1A CHASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FN2090, FN2092 Series CE Declaration

FN2090-1-06

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 110V/250VAC 1A CHASS

Deep-Dive with AI

DocumentsDatasheet FN2090, FN2092 Series CE Declaration

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2090-1-06

Applications	General Purpose
Approval Agency	UR, CSA, ENEC, CE
Configuration	Two Stage
Current	1 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	20 mH
Mounting Type	Chassis Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Termination Style	Quick Connect
Voltage - Rated AC	250 V, 110 V

FN2090A Series

Part	Termination Style	Voltage - Rated AC	Approval Agency	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Current	Filter Type	Mounting Type	Applications	Frequency - Operating	Operating Temperature [custom]	Voltage - Rated DC
TE Connectivity Raychem Cable Protection FN2090B-1-06	Quick Connect	250 V	CSA ENEC UL	Two Stage	100 °C	-20 C	60 Hz	50 Hz	20 mH	1 A	Single Phase	Chassis Mount	Medical
TE Connectivity Raychem Cable Protection FN2090B-3-06	Quick Connect	110 V 250 V	CE CSA ENEC UR	Two Stage	100 °C	-20 C			14 mH	3 A	Single Phase	Chassis Mount	General Purpose	400 Hz
TE Connectivity Raychem Cable Protection FN2090A-12-06	Quick Connect	110 V 250 V	CE CSA ENEC UR	Two Stage	100 °C	-20 C			4 mH	12 A	Single Phase	Chassis Mount	Safety	400 Hz
TE Connectivity Raychem Cable Protection FN2090Z-10-08	Threaded Post (M4)	250 V	CE CSA ENEC UKCA UR	Two Stage			60 Hz	50 Hz	8 mH	10 A	Single Phase	Chassis Mount	General Purpose		-25 °C 100 °C	250 V
TE Connectivity Raychem Cable Protection FN2090A-4-06	Quick Connect	110 V 250 V	CE CSA ENEC UR	Two Stage	100 °C	-20 C			14 mH	4 A	Single Phase	Chassis Mount	Safety	400 Hz
TE Connectivity Raychem Cable Protection FN2090A-6-06	Quick Connect	110 V 250 V	CE CSA ENEC UR	Two Stage	100 °C	-20 C			8 mH	6 A	Single Phase	Chassis Mount	Safety	400 Hz
TE Connectivity Raychem Cable Protection FN2090-1-06	Quick Connect	110 V 250 V	CE CSA ENEC UR	Two Stage	100 °C	-20 C			20 mH	1 A	Single Phase	Chassis Mount	General Purpose	400 Hz
TE Connectivity Raychem Cable Protection FN2090B-8-06	Quick Connect	110 V 250 V	CE CSA ENEC UR	Two Stage	100 °C	-20 C			8 mH	8 A	Single Phase	Chassis Mount	General Purpose	400 Hz
TE Connectivity Raychem Cable Protection FN2090LL-12-08	Threaded Post (M4)	250 V	CE CSA ENEC UKCA UR	Two Stage			60 Hz	50 Hz	4 mH	12 A	Single Phase	Chassis Mount	General Purpose		-25 °C 100 °C	250 V
TE Connectivity Raychem Cable Protection FN2090A-16-06	Quick Connect	110 V 250 V	CE CSA ENEC UR	Two Stage	100 °C	-20 C			4 mH	16 A	Single Phase	Chassis Mount	Safety	400 Hz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.47
		10	$ 23.24
		25	$ 21.43
		50	$ 20.16
		100	$ 18.96
		250	$ 18.13

Description

General part information

FN2090A Series

Single Phase EMC/EMI Line Filter 1 A 110V, 250V DC ~ 400Hz Two Stage Quick Connect
