10147606-00007LF
ActiveAmphenol ICC (FCI)

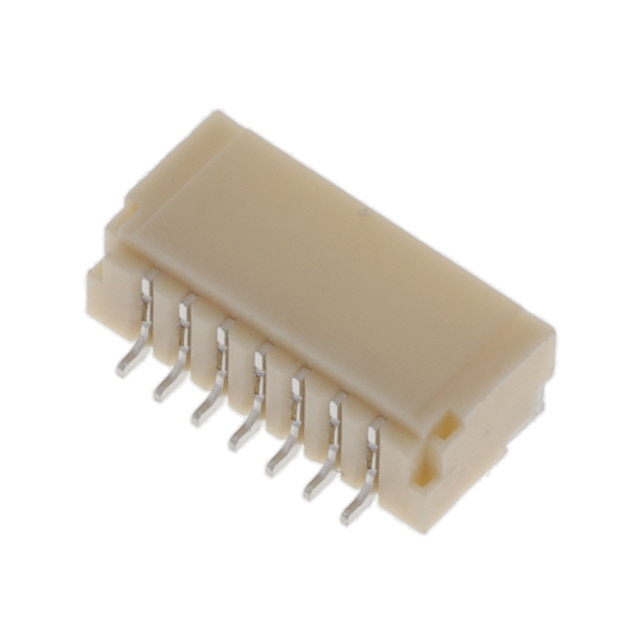

CONN HEADER SMD R/A 7POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
10147606-00007LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 7POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10147606-00007LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.114 " |
| Insulation Height | 2.9 mm |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
10147606 Series
| Part | Features | Shrouding | Contact Finish - Post | Insulation Height | Insulation Height | Fastening Type | Material Flammability Rating | Contact Shape | Pitch - Mating | Pitch - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions Loaded | Contact Type | Voltage Rating | Number of Rows | Style | Termination | Mounting Type | Insulation Material | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Solder Retention | Shrouded - 4 Wall | Tin | 0.114 " | 2.9 mm | Push-Pull | UL94 V-0 | Rectangular | 0.039 in | 1 mm | Header | -25 °C | 85 °C | Brass | All | Male Pin | 50 VAC | 1 | Board to Cable/Wire | Solder | Surface Mount Right Angle | Nylon 9T Polyamide (PA9T) | Natural | |
Amphenol ICC (FCI) | Solder Retention | Shrouded - 4 Wall | Tin | 0.114 " | 2.9 mm | Push-Pull | UL94 V-0 | Rectangular | 0.039 in | 1 mm | Header | -25 °C | 85 °C | Brass | All | Male Pin | 50 VAC | 1 | Board to Cable/Wire | Solder | Surface Mount Right Angle | Nylon 9T Polyamide (PA9T) | Natural | |
Amphenol ICC (FCI) | Solder Retention | Shrouded - 4 Wall | Tin | 0.114 " | 2.9 mm | Push-Pull | UL94 V-0 | Rectangular | 0.039 in | 1 mm | Header | -25 °C | 85 °C | Brass | All | Male Pin | 50 VAC | 1 | Board to Cable/Wire | Solder | Surface Mount Right Angle | Nylon 9T Polyamide (PA9T) | Natural | 6 |
Amphenol ICC (FCI) | Solder Retention | Shrouded - 4 Wall | Tin | 0.114 " | 2.9 mm | Push-Pull | UL94 V-0 | Rectangular | 0.039 in | 1 mm | Header | -25 °C | 85 °C | Brass | All | Male Pin | 50 VAC | 1 | Board to Cable/Wire | Solder | Surface Mount Right Angle | Nylon 9T Polyamide (PA9T) | Natural | 14 |
Amphenol ICC (FCI) | Solder Retention | Shrouded - 4 Wall | Tin | 0.114 " | 2.9 mm | Push-Pull | UL94 V-0 | Rectangular | 0.039 in | 1 mm | Header | -25 °C | 85 °C | Brass | All | Male Pin | 50 VAC | 1 | Board to Cable/Wire | Solder | Surface Mount Right Angle | Nylon 9T Polyamide (PA9T) | Natural | 7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.91 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.91 | ||
| 10 | $ 0.55 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.35 | |||
| Tape & Reel (TR) | 1700 | $ 0.27 | ||
Description
General part information
10147606 Series
Connector Header Surface Mount, Right Angle 7 position 0.039" (1.00mm)
