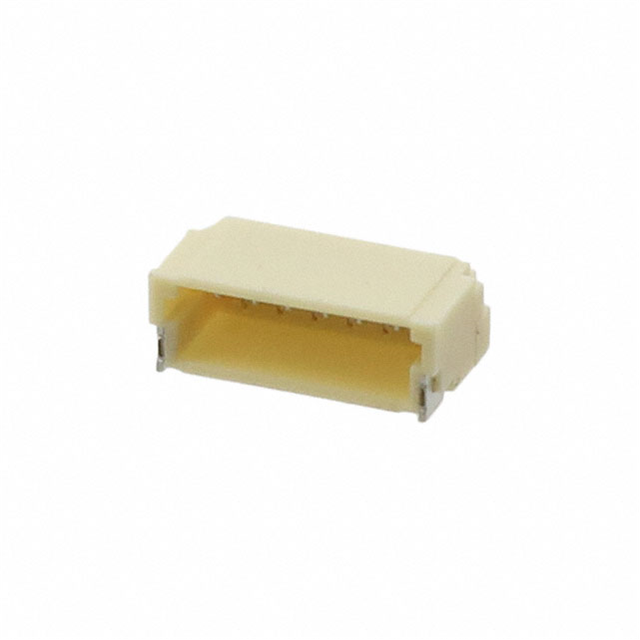

10147606-00006LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD R/A 6POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek 1 00 productpresentation Other Related Document gs-12-1465 Other Related Document +1

10147606-00006LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD R/A 6POS 1MM

Deep-Dive with AI

Documentsminitek 1 00 productpresentation Other Related Document gs-12-1465 Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10147606-00006LF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.114 "
Insulation Height	2.9 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

10147606 Series

Part	Features	Shrouding	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions Loaded	Contact Type	Voltage Rating	Number of Rows	Style	Termination	Mounting Type	Insulation Material	Insulation Color	Number of Positions
Amphenol ICC (FCI) 10147606-00003LF	Solder Retention	Shrouded - 4 Wall	Tin	0.114 "	2.9 mm	Push-Pull	UL94 V-0	Rectangular	0.039 in	1 mm	Header	-25 °C	85 °C	Brass	All	Male Pin	50 VAC	1	Board to Cable/Wire	Solder	Surface Mount Right Angle	Nylon 9T Polyamide (PA9T)	Natural
Amphenol ICC (FCI) 10147606-00005LF	Solder Retention	Shrouded - 4 Wall	Tin	0.114 "	2.9 mm	Push-Pull	UL94 V-0	Rectangular	0.039 in	1 mm	Header	-25 °C	85 °C	Brass	All	Male Pin	50 VAC	1	Board to Cable/Wire	Solder	Surface Mount Right Angle	Nylon 9T Polyamide (PA9T)	Natural
Amphenol ICC (FCI) 10147606-00006LF	Solder Retention	Shrouded - 4 Wall	Tin	0.114 "	2.9 mm	Push-Pull	UL94 V-0	Rectangular	0.039 in	1 mm	Header	-25 °C	85 °C	Brass	All	Male Pin	50 VAC	1	Board to Cable/Wire	Solder	Surface Mount Right Angle	Nylon 9T Polyamide (PA9T)	Natural	6
Amphenol ICC (FCI) 10147606-00014LF	Solder Retention	Shrouded - 4 Wall	Tin	0.114 "	2.9 mm	Push-Pull	UL94 V-0	Rectangular	0.039 in	1 mm	Header	-25 °C	85 °C	Brass	All	Male Pin	50 VAC	1	Board to Cable/Wire	Solder	Surface Mount Right Angle	Nylon 9T Polyamide (PA9T)	Natural	14
Amphenol ICC (FCI) 10147606-00007LF	Solder Retention	Shrouded - 4 Wall	Tin	0.114 "	2.9 mm	Push-Pull	UL94 V-0	Rectangular	0.039 in	1 mm	Header	-25 °C	85 °C	Brass	All	Male Pin	50 VAC	1	Board to Cable/Wire	Solder	Surface Mount Right Angle	Nylon 9T Polyamide (PA9T)	Natural	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.61
		10	$ 0.46
		100	$ 0.36
		500	$ 0.33
	Digi-Reel®	1	$ 0.61
		10	$ 0.46
		100	$ 0.36
		500	$ 0.33
	Tape & Reel (TR)	1700	$ 0.29
