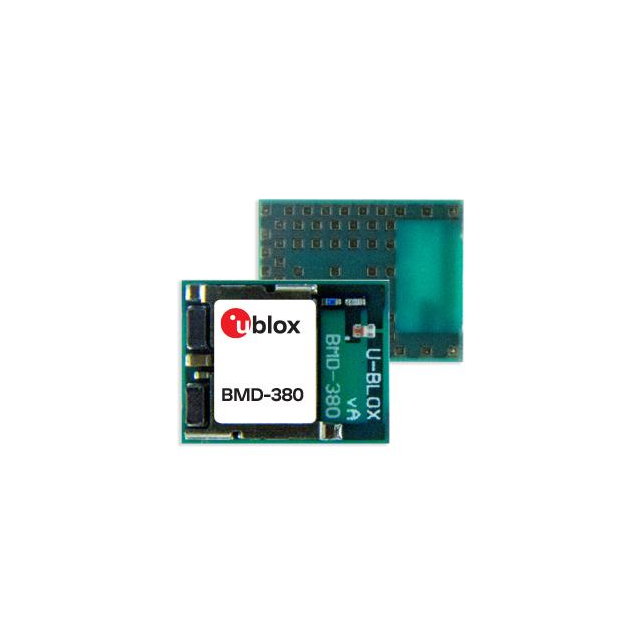

BMD-380-A-R

Active

u-blox

RF TXRX MOD 802.15.4 BT CHIP SMD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MOD 802.15.4 BT CHIP SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMD-380-A-R	BMD-380 Series

Antenna Type	Integrated, Chip	Integrated, Chip
Current - Receiving [Max]	9.9 mA	9.9 mA
Current - Receiving [Min]	4.6 mA	4.6 mA
Current - Transmitting [Max]	32.7 mA	32.7 mA
Current - Transmitting [Min]	4.8 mA	4.8 mA
Data Rate	2 Mbps	2 Mbps
For Use With/Related Products	-	nRF52840, BMD-380
Frequency [Max]	2.5 GHz	2.5 GHz
Frequency [Min]	2.36 GHz	2.36 GHz
Memory Size	1 MB, 256 kB	1 - 256 MB
Modulation	GFSK, QPSK	GFSK, QPSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	63-SMD Module	63-SMD Module
Power - Output	8 dBm	8 dBm
Protocol	Bluetooth v5.1, Thread, Zigbee®	Bluetooth v5.1, Thread, Zigbee®
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Serial Interfaces	PWM, PDM, ADC, SPI, USB, GPIO, I2C, UART, I2S	PWM, PDM, ADC, SPI, USB, GPIO, I2C, UART, I2S
Supplied Contents	-	Board(s)
Type	-	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)
Utilized IC / Part	nRF52840	nRF52840
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.7 V	1.7 V

EVAL BOARD BMD-380 NRF52840

Part	Supplied Contents	Type	For Use With/Related Products	Current - Transmitting [Min]	Current - Transmitting [Max]	Data Rate	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Utilized IC / Part	Memory Size	Frequency [Max]	Frequency [Min]	Protocol	Current - Receiving [Max]	Current - Receiving [Min]	Package / Case	Antenna Type	Modulation	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
u-blox BMD-380-EVAL	Board(s)	802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver	BMD-380, nRF52840
u-blox BMD-380-A-R				4.8 mA	32.7 mA	2 Mbps	8 dBm	85 °C	-40 °C	802.15.4, Bluetooth	nRF52840	1 MB, 256 kB	2.5 GHz	2.36 GHz	Bluetooth v5.1, Thread, Zigbee®	9.9 mA	4.6 mA	63-SMD Module	Integrated, Chip	GFSK, QPSK	ADC, GPIO, I2C, I2S, PDM, PWM, SPI, UART, USB	3.6 V	1.7 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth Bluetooth v5.1, Thread, Zigbee® Transceiver Module 2.36GHz ~ 2.5GHz Integrated, Chip Surface Mount
