BMD-380-EVAL

Active

u-blox

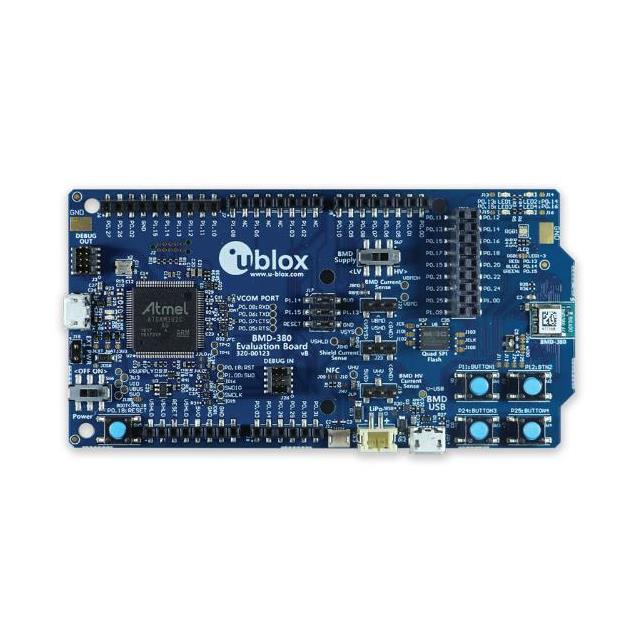

EVAL BOARD BMD-380 NRF52840

Search across all available documentation for this part.

Active

u-blox

EVAL BOARD BMD-380 NRF52840

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMD-380-EVAL	BMD-380 Series

Antenna Type	-	Integrated, Chip
Current - Receiving	-	9.9 mA
Current - Receiving	-	4.6 mA
Current - Transmitting	-	4.8 mA
Current - Transmitting	-	32.7 mA
Data Rate	-	2 Mbps
For Use With/Related Products	nRF52840, BMD-380	nRF52840, BMD-380
Frequency	-	2.5 GHz
Frequency	-	2.36 GHz
Memory Size	-	1 - 256 MB
Modulation	-	GFSK, QPSK
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	63-SMD Module
Power - Output	-	8 dBm
Protocol	-	Bluetooth v5.1, Thread, Zigbee®
RF Family/Standard	-	Bluetooth, 802.15.4
Serial Interfaces	-	PWM, PDM, ADC, SPI, USB, GPIO, I2C, UART, I2S
Supplied Contents	Board(s)	Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)
Utilized IC / Part	-	nRF52840
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.7 V

EVAL BOARD BMD-380 NRF52840

Part	Supplied Contents	Type	For Use With/Related Products	Current - Transmitting [Min]	Current - Transmitting [Max]	Data Rate	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Utilized IC / Part	Memory Size	Frequency [Max]	Frequency [Min]	Protocol	Current - Receiving [Max]	Current - Receiving [Min]	Package / Case	Antenna Type	Modulation	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
u-blox BMD-380-EVAL	Board(s)	802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver	BMD-380, nRF52840
u-blox BMD-380-A-R				4.8 mA	32.7 mA	2 Mbps	8 dBm	85 °C	-40 °C	802.15.4, Bluetooth	nRF52840	1 MB, 256 kB	2.5 GHz	2.36 GHz	Bluetooth v5.1, Thread, Zigbee®	9.9 mA	4.6 mA	63-SMD Module	Integrated, Chip	GFSK, QPSK	ADC, GPIO, I2C, I2S, PDM, PWM, SPI, UART, USB	3.6 V	1.7 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00

General part information

BMD-380 BMD-380, nRF52840 Transceiver; 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE) Evaluation Board
