9363 060U500
ActiveBelden Inc.
MULTI-PAIR 3CON 22AWG CHROM 500'
Deep-Dive with AI
Search across all available documentation for this part.
9363 060U500
ActiveBelden Inc.
MULTI-PAIR 3CON 22AWG CHROM 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9363 060U500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.208 in |
| Jacket (Insulation) Diameter [diameter] | 5.28 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.94 mm |
| Jacket (Insulation) Thickness | 0.037 in |
| Jacket Color | Chrome |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 893.60 | |
| 2 | $ 849.36 | |||
| 3 | $ 824.31 | |||
| 5 | $ 793.63 | |||
| 7 | $ 773.92 | |||
| 10 | $ 753.46 | |||
Description
General part information
9363 Series

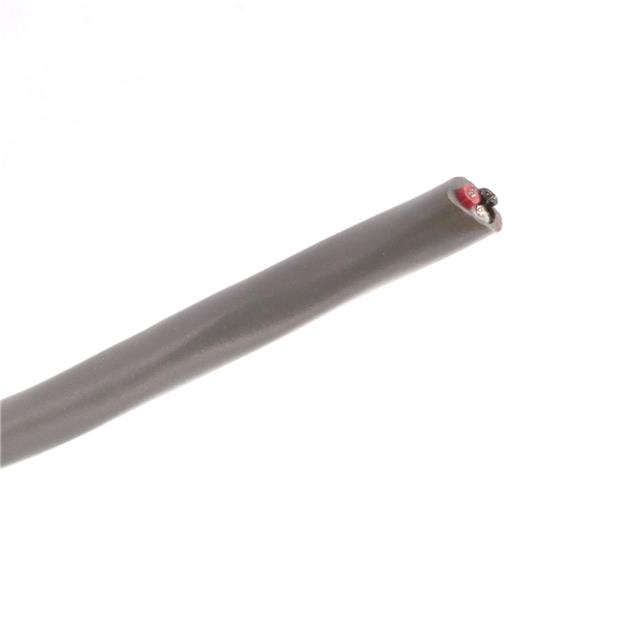

3 (1.5 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil 500.0' (152.4m)
