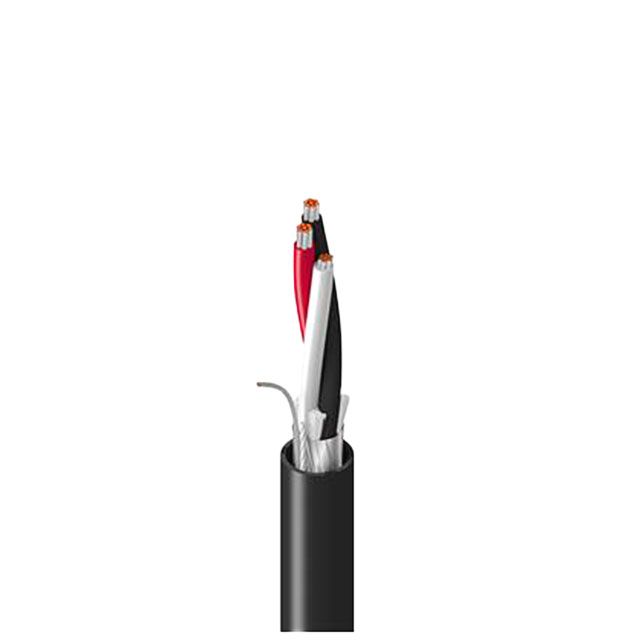

9363 060U1000 - MFG_9363-060U1000

9363 060U1000

Active
Belden Inc.

CABLE 3COND 22AWG CHROMEE SHD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCabling Solutions for Industrial Applications
9363 060U1000 - MFG_9363-060U1000

9363 060U1000

Active
Belden Inc.

CABLE 3COND 22AWG CHROMEE SHD

Deep-Dive with AI

DocumentsDatasheetCabling Solutions for Industrial Applications

Technical Specifications

Parameters and characteristics for this part

Specification9363 060U1000
Cable TypeMulti-Conductor
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]7
Conductor Strand [custom]30 AWG
FeaturesRip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]5.33 mm
Jacket (Insulation) Diameter [diameter]0.21 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness0.94 mm
Jacket (Insulation) Thickness0.037 in
Jacket ColorChrome
Length1000 ft
Length304.8 m
Number of Conductors3
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-30 ░C
RatingsUL Style 2464
Shield Coverage100 %
Shield MaterialAluminum
Shield TypeFoil
UsageInstrumentation
Wire Gauge22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 1000$ 1.74
3000$ 1.63
5000$ 1.55
LCSCPiece 1$ 0.69

Description

General part information

9363 Series

3 (1 Triad) Conductor Multi-Conductor Cable Chrome 22 AWG Foil 1000.0' (304.8m)
