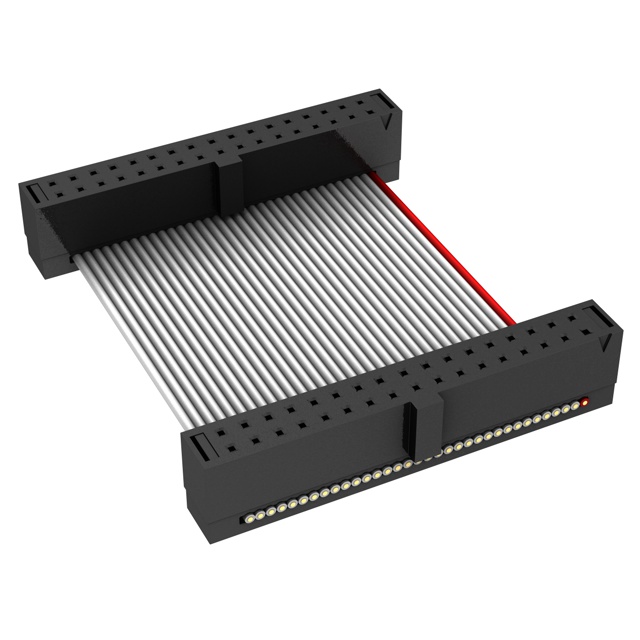

FFSD-17-D-02.75-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-17-D-02.75-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-17-D-02.75-01-N

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length	69.85 mm
Length	0.229 ft
Length	2.75 in
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-17 Series

...

Part	Pitch - Cable [x]	Pitch - Cable	Number of Rows	Number of Positions	Pitch - Connector	Pitch - Connector	Features	Contact Finish	Cable Termination	Shielding	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Length	Length	Length [x]	Length
Samtec Inc. FFSD-17-D-36.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	3 ft	914.4 mm
Samtec Inc. FFSD-17-D-42.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			1070 mm	42 "
Samtec Inc. FFSD-17-D-19.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	1.58 '		482.6 mm
Samtec Inc. FFSD-17-D-02.16-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	2.16 in	54.86 mm			2.16 in
Samtec Inc. FFSD-17-D-02.75-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			69.85 mm	0.229 ft		2.75 in
Samtec Inc. FFSD-17-D-29.00-01-N-SR	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key Strain Relief	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			736.6 mm	2.42 '
Samtec Inc. FFSD-17-D-23.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	1.92 '	584.2 mm
Samtec Inc. FFSD-17-D-01.30-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			33.02 mm	0.108 '		1.3 "
Samtec Inc. FFSD-17-D-18.00-01-N-D15	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket (3)	10 Áin	0.25 Ám	1.5 ft	457.2 mm
Samtec Inc. FFSD-17-D-31.50-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	2.62 '	800.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.75

Description

General part information

FFSD-17 Series

34 Position Cable Assembly Rectangular Socket to Socket 0.229' (69.85mm, 2.75")
