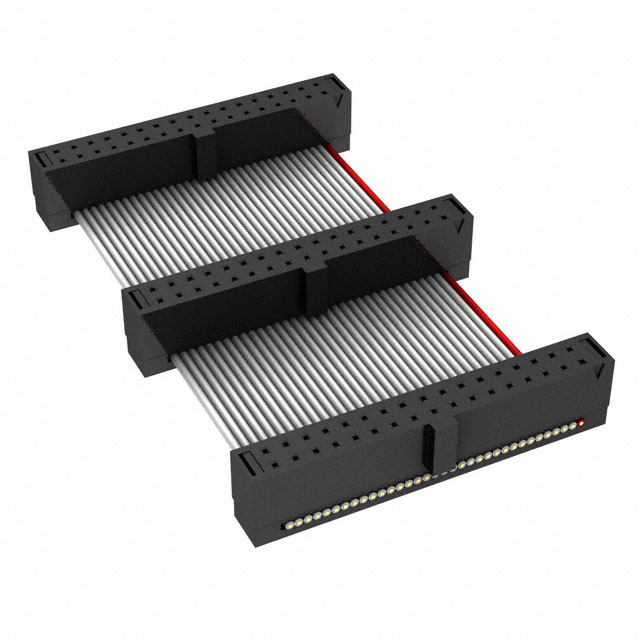

FFSD-17-D-18.00-01-N-D15

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-17-D-18.00-01-N-D15

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-17-D-18.00-01-N-D15

Cable Termination	IDC
Connector Type	Socket to Socket (3)
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-17 Series

...

Part	Pitch - Cable [x]	Pitch - Cable	Number of Rows	Number of Positions	Pitch - Connector	Pitch - Connector	Features	Contact Finish	Cable Termination	Shielding	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Length	Length	Length [x]	Length
Samtec Inc. FFSD-17-D-36.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	3 ft	914.4 mm
Samtec Inc. FFSD-17-D-42.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			1070 mm	42 "
Samtec Inc. FFSD-17-D-19.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	1.58 '		482.6 mm
Samtec Inc. FFSD-17-D-02.16-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	2.16 in	54.86 mm			2.16 in
Samtec Inc. FFSD-17-D-02.75-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			69.85 mm	0.229 ft		2.75 in
Samtec Inc. FFSD-17-D-29.00-01-N-SR	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key Strain Relief	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			736.6 mm	2.42 '
Samtec Inc. FFSD-17-D-23.00-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	1.92 '	584.2 mm
Samtec Inc. FFSD-17-D-01.30-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám			33.02 mm	0.108 '		1.3 "
Samtec Inc. FFSD-17-D-18.00-01-N-D15	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket (3)	10 Áin	0.25 Ám	1.5 ft	457.2 mm
Samtec Inc. FFSD-17-D-31.50-01-N	0.025 in	0.64 mm	2	34	0.05 in	1.27 mm	Polarizing Key	Gold	IDC	Unshielded	Socket to Socket	10 Áin	0.25 Ám	2.62 '	800.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.13

Description

General part information

FFSD-17 Series

34 Position Cable Assembly Rectangular Socket to Socket (3) 1.50' (457.20mm)

Documents

Technical documentation and resources
