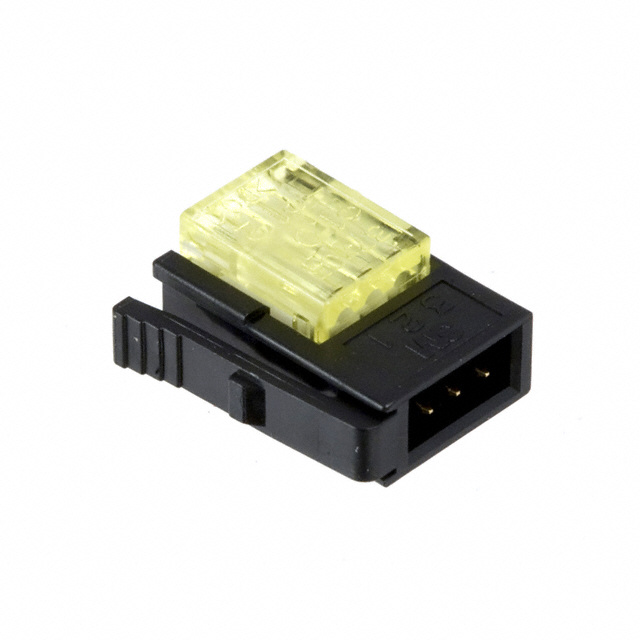

37103-B122-00E MB
Active3M (TC)
CONN PLUG 3POS IDC 24-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
37103-B122-00E MB
Active3M (TC)
CONN PLUG 3POS IDC 24-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 37103-B122-00E MB |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
37103 Series
| Part | Pitch [x] | Pitch [x] | Wire Type | Features | Number of Rows | Color | Cable Termination | Fastening Type | Mounting Type | Contact Finish | Contact Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 24 AWG | 26 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 24 AWG | 26 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 8 çin | 0.203 çm | Plug | ||
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 20 AWG | 24 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 20 AWG | 22 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 20 AWG | 22 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 24 AWG | 26 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 24 AWG | 26 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 20 AWG | 22 AWG | 8 çin | 0.203 çm | Plug |
3M (TC) | 0.079 in | 2 mm | Discrete | Closed End | 1 | Black | IDC | Latch Lock | Free Hanging (In-Line) | Gold | Male Pin | 20 AWG | 22 AWG | 8 çin | 0.203 çm | Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5000 | $ 1.81 | |
Description
General part information
37103 Series
3 Position Rectangular Plug Connector IDC Gold 24-26 AWG
